Product Description

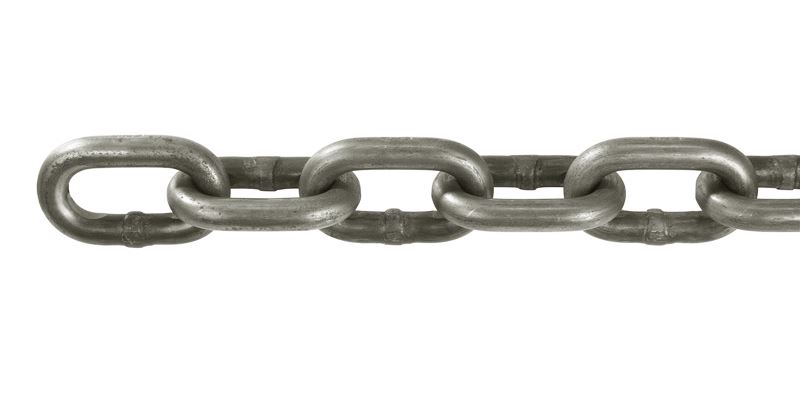

Our domain expertise has enabled us to come up with an excellent collection of Galvanized Welded Link Chains. These chains are manufactured by making use of high-grade stainless steel at our infrastructure facility. Designed with utmost precision, these chains are ideal to be used for locking fences and gates.
Features:
Dimensional stability
Smooth finish
Resistance against corrosion
High compressive strength

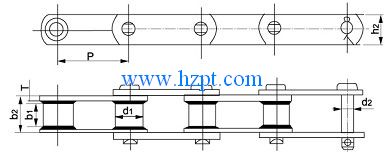

Welded Straight Sidebar Chain

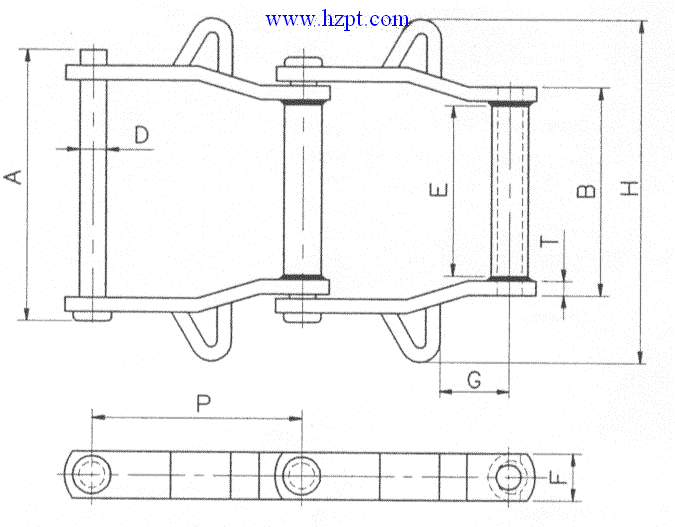

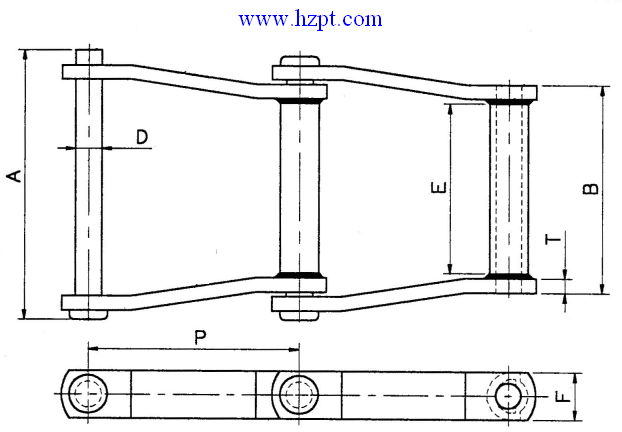

Welded Steel Drag Chain
|
CHAIN NUMBER |
PITCH |
MIN ULTIMATE STRENGTH KGS |
DIMENSION---MM | ||||||||
| INCH | MM | A | B(max) | D | T | E(min) | F | G | H | ||

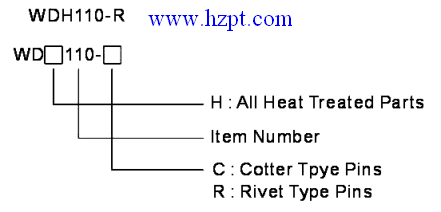

| WDH110-R | 6 | 152.4 | 25000 | 300.84 | 263.5 | 18.9 | 9.5 | 238.5 | 38.1 | 66.8 | 431.8 |
| WDH112-R | 8 | 203.2 | 25000 | 300.84 | 263.5 | 18.9 | 9.5 | 231.5 | 38.1 | --- | --- |
| WDH120-R | 6 | 152.4 | 35800 | 306.37 | 260.35 | 22.07 | 12.7 | 222.25 | 50.8 | --- | --- |
| WDH2210-R | 6.136 | 155.85 | 25000 | 300.84 | 263.5 | 18.9 | 9.5 | 236.5 | 38.1 | --- | --- |
| WDH480-R | 8 | 203.2 | 35800 | 366.85 | 323.85 | 22.07 | 12.7 | 285.75 | 50.8 | 82.55 | 558.8 |
| WDH116-R | 8 | 203.2 | 25000 | 396 | 358.8 | 18.9 | 9.5 | 325.8 | 44.45 | --- | --- |
