Mega chains are manufactured completely out of high quality 304-grade stainless steel and is an in-stock item at china. It is the strongest stainless steel roller chain in the world that will run on ANSI sprockets. Due to the construction and quality of stainless steel used, the mega-series roller chain offers the same tensile strength as carbon steel roller chains.
Sprocket:Standard Roller Chain sprockets can be used

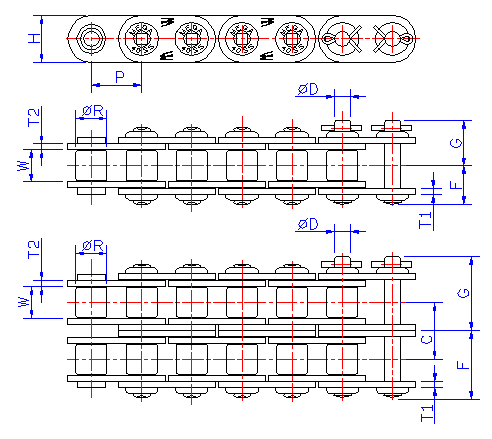

Due to the new design of the plate the pin is now longer(F,G). Please check for any interference.
Material:AISI304(SS)
|
MEGA CHAIN NO. |
Pitch*Width | Roller | Links |
Pin |
Transversc Pitch |
Average Ultimate Strength Kgf |
Max Allowable Load Kgf |
|||||
| P*W | Dia | Height | Thickness | Dia | Lengths | |||||||
| Inch | mm | R | H | T1 | T2 | D | F | G | C | |||
| 40SS-1 | 1/2"*5/16" | 12.7*7.95 | 7.92 | 12 | 1.5 | 1.5 | 3.96 | 9.85 | 11.55 | --- | 1800 | 70 |
| 40SS-2 | 1/2"*5/16" | 12.7*7.95 | 7.92 | 12 | 1.5 | 1.5 | 3.96 | 9.85 | 18.75 | 14.4 | 3000 | 110 |
| 50SS-1 | 5/8"*3/8" | 15.875*9.53 | 10.16 | 15 | 2.0 | 2.0 | 5.06 | 12.15 | 14.25 | --- | 3200 | 120 |
| 50SS-2 | 5/8"*3/8" | 15.875*9.53 | 10.16 | 15 | 2.0 | 2.0 | 5.06 | 21.2 | 23.3 | 18.1 | 4800 | 190 |
| 60SS-1 | 3/4"*1/2" | 19.05*12.7 | 11.91 | 18.1 | 2.35 | 2.35 | 5.94 | 15.15 | 17.45 | --- | 4400 | 165 |
| 60SS-2 | 3/4*1/2" | 19.05*12.7 | 11.91 | 18.1 | 2.35 | 2.35 | 5.94 | 26.55 | 28.85 | 22.8 | 6800 | 280 |
| 80SS-1 | 1"*5/8" | 25.4*15.88 | 15.88 | 24 | 3.0 | 3.0 | 7.94 | 19.45 | 22.1 | --- | 7200 | 290 |
| 80SS-2 | 1"*5/8" | 25.5*15.88 | 15.88 | 24 | 3.0 | 3.0 | 7.94 | 34.1 | 36.75 | 29.3 | 10800 | 490 |
