Product Description

Double strands chain also be manufacture
Sprocket:Standard Roller Chain sprockets can be used
Due to the new design of the plate the pin is now longer(F,G). Please check for any interference.
Material:AISI304(SS)

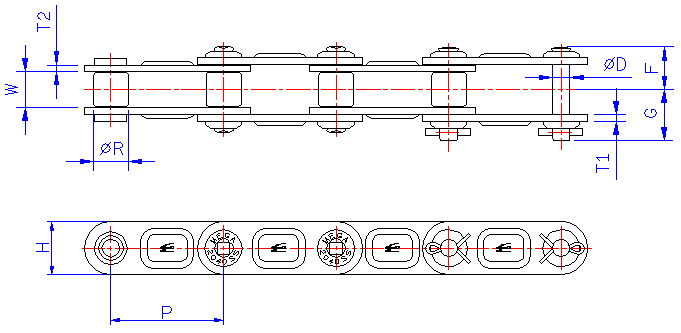

MEGA CHAIN NO.	Pitch*Width		Roller	Links			Pin			Average Ultimate Strength Kgf	Max Allowable Load Kgf
	Pitch*Width		Roller	Links			Pin
	P*W		Dia	Height	Thickness		Dia	Lengths
	Inch	mm	R	H	T1	T2	D	F	G
2040SS	1″*5/16″	25.40*7.95	7.92	12	1.5	1.5	3.96	9.85	11.55	1800	70
2050SS	1-1/4″*3/8″	31.75*9.53	10.16	15	2	2	5.06	12.15	14.25	3200	120
2060SS	1-1/2″*1/2″	38.10*12.7	11.91	17.2	2.35	2.35	5.94	15.15	17.45	4400	165
2080SS	2″*5/8″	50.80*15.88	15.88	23	3	3	7.94	19.45	22.1	7200	290
