Stainless Steel Leaf Chains

Product Description Leveraging on our quality approach, we have been able to manufacture and supply a superior range of Stainless Steel Leaf Chain . This range of products is carefully made using the latest technology emerged in the industry. Our production team is expert enough to manufacture...

Send Inquiry

Product Description

Leveraging on our quality approach, we have been able to manufacture and supply a superior range of Stainless Steel Leaf Chain. This range of products is carefully made using the latest technology emerged in the industry. Our production team is expert enough to manufacture the chains in various customized specifications. The chains offered by us work for a long period of time without any lubrication.

Feature:

Need low maintenance

Long service life

Resistance to corrosion

Stainless Steel Leaf Chains

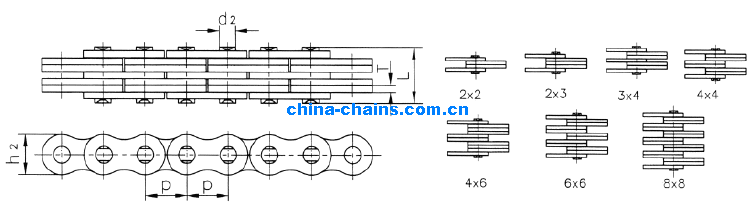

DIN ISO Chain No.	ANSI Chain No.	Pitch	Chain Lacing	Plate depth	Plate thickness	Pin diameter	Pin length	Ultimate tensile strength	Average tensile strength	Weight per meter
		P		h2(max)	T(max)	d2(max)	L(max)	Q(min)	Q0	q
		mm		mm	mm	mm	mm	kN	kN	kg/m
LH2022SS	BL1022SS	31.75	2X2	30.18	4.9	11.11	25.37	69.36	90.48	3.4
LH2023SS	BL1023SS		2X3				30.33	69.36	90.48	4.3
LH2034SS	BL1034SS		3X4				40.23	109.44	138.96	6
LH2044SS	BL1044SS		4X4				45.19	138.78	174.84	6.9
LH2046SS	BL1046SS		4X6				55.09	138.78	174.84	8.6
LH2066SS	BL1066SS		6X6				65	208.2	258.18	10.3
LH2088SS	BL1088SS		8X8				84.81	277.56	333.06	13.8
LH2422SS	BL1222SS	38.1	2X2	36.2	5.77	12.71	29.62	90.72	115.2	4.6
LH2423SS	BL1223SS		2X3				35.43	90.72	115.2	5.8
LH2434SS	BL1234SS		3X4				47.07	146.76	189.54	8.1
LH2444SS	BL1244SS		4X4				52.88	181.5	228.6	9.3
LH2446SS	BL1246SS		4X6				64.52	181.5	228.6	11.6
LH2466SS	BL1266SS		6X6				76.15	272.22	326.16	13.9
LH2488SS	BL1288SS		8X8				99.42	363	435.6	18.6
LH2822SS	BL1422SS	44.45	2X2	42.24	6.55	14.29	33.55	114.78	135.42	6.1
LH2823SS	BL1423SS		2X3				40.16	114.78	135.42	7.6
LH2834SS	BL1434SS		3X4				53.37	189.48	196.56	10.6
LH2844SS	BL1444SS		4X4				59.97	229.56	270.72	12.2
LH2846SS	BL1446SS		4X6				73.18	229.56	270.72	15.2
LH2866SS	BL1466SS		6X6				86.39	346.98	409.44	18.2
LH2888SS	BL1488SS		8X8				112.8	459.06	541.68	24.3
LH3222SS	BL1622SS	50.8	2X2	48.26	7.52	17.46	39.01	173.46	204.66	8
LH3223SS	BL1623SS		2X3				46.58	173.46	204.66	10
LH3234SS	BL1634SS		3X4				61.72	264.24	311.76	14
LH3244SS	BL1644SS		4X4				69.29	346.98	408.24	16
LH3246SS	BL1646SS		4X6				84.43	346.98	408.24	20
LH3266SS	BL1666SS		6X6				99.57	514.44	600.42	24
LH3288SS	BL1688SS		8X8				129.84	693.9	818.76	32
LH4022SS	BL2022SS	63.5	2X2	60.33	9091	23.81	51.74	260.22	307.02	15.87
LH4023SS	BL2023SS		2X3				61.7	260.22	307.02	19.8
LH4034SS	BL2034SS		3X4				81.61	389.64	459.72	27.7
LH4044SS	BL2044SS		4X4				91.57	520.44	614.1	31.6
LH4046SS	BL2046SS		4X6				111.48	520.44	614.1	39.5
LH4066SS	BL2066SS		6X6				131.39	780.66	921.12	47.4
LH4088SS	BL2088SS		8X8				171.22	1040.88	1227.9	63.2
