Stainless Steel Roller Chains

This #40 Stainless Steel Roller Chain fully meets all ANSI standards and is a durable, corrosion resistant, stainless steel roller chain. Economy Plus #40 stainless steel roller chain has a tensile strength of 2,760lbs and is constructed entirely out of 304-grade stainless steel. Making a roller...

Send Inquiry

Product Description

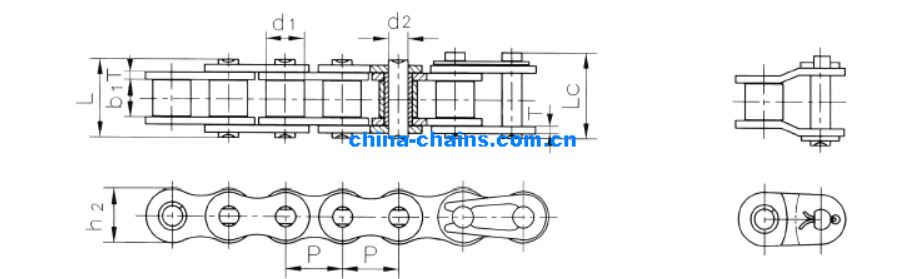

Simplex Stainless Steel Roller Chains & bushing chains

simplex Stainless Steel Roller Chains& bushing chains
DIN ISO	ANSI	pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length		Inner plate depth	Plate thickness	Ultimate tensile strength	Average tensile strength	Weight per meter
		P	d1(max)	b1(min)	d2(max)	L(max)	Lc(max)	h2(max)	T(max)	Q(min)	Q0	q
		mm	mm	mm	mm	mm	mm	mm	mm	kN	kN	kg/m
*04CSS-1	*25SS	6.35	3.3	3.18	2.31	7.9	8.4	6	0.8	2.1	2.76	0.15
*06CSS-1	*35SS	9.525	5.08	4.77	3.58	12.4	13.17	9	1.3	4.74	6.48	0.33
085SS-1	41SS	12.7	7.77	6.25	3.58	13.75	15	9.91	1.3	4	7.56	0.41
08ASS-1	40SS	12.7	7.95	7.85	3.96	16.6	17.8	12	1.5	8.46	10.5	0.62
10ASS-1	50SS	15.875	10.16	9.4	5.08	20.7	22.2	15.09	2.03	13.32	17.64	1.02
12ASS-1	60SS	19.05	11.91	12.57	5.94	25.9	27.7	18	2.42	19.08	49.88	1.5
16ASS-1	80SS	25.4	15.88	15.75	7.92	32.7	35	24	3.25	34.02	41.64	2.6
20ASS-1	100SS	31.75	19.05	18.9	9.53	40.4	44.7	30	4	53.1	65.52	3.91
24ASS-1	120SS	38.1	22.23	25.22	11.1	50.3	54.3	35.7	4.8	76.2	93.78	5.62
28ASS-1	140SS	44.45	25.4	25.22	12.7	54.4	59	41	5.6	103.44	127.2	7.5
32ASS-1	160SS	50.8	28.58	31.55	14.27	64.8	69.6	47.8	6.4	136.08	167.34	10.1
36ASS-1	180SS	57.15	35.71	35.48	17.46	72.8	78.6	53.6	7.2	168.12	205.08	13.456
40ASS-1	200SS	63.5	39.68	37.85	19.85	80.3	87.2	60	8	212.28	258.96	16.15
48ASS-1	240SS	76.2	47.63	47.35	23.81	95.5	103	72.39	9.5	306.18	373.5	23.2

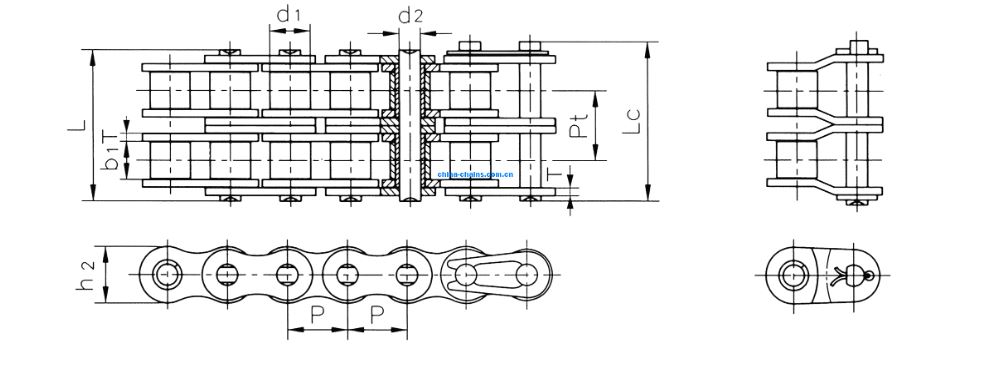

Duplex Stainless Steel Roller Chains &bushing chains

Stainless Steel Roller Chains

IDN ISO Chain No.	ANSI Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length		Inner plate depth	Plate thickness	Transverse pitch	Ultimate tensile strength	Average tensile strength	Weight per meter
		P	d1(max)	b1(min)	d2(max)	L(max)	Lc(max)	h2(max)	T(max)	Pt	Q(min)	Q0	q
		mm	mm	mm	mm	mmm	mm	mm	mm	mm	kN	kN	kg/m
*04CSS-2	*25SS-2	6.35	3.3	3.18	2.31	14.5	15	6	0.8	6.4	4.2	5.16	0.28
*06CSS-2	*35SS-2	9.525	5.08	4.77	3.58	22.5	23.3	9	1.3	10.13	9.48	11.82	0.63
085SS-2	41SS-2	12.7	7.77	6.25	3.58	25.7	26.9	9.91	1.3	11.95	8	10.14	0.81
08ASS-2	40SS-2	12.7	7.95	7.85	3.96	31	32.2	12	1.5	14.38	16.92	21.54	1.12
10ASS-2	50SS-2	15.875	10.16	9.4	5.08	38.9	40.4	15.09	2.03	18.11	26.46	34.86	2
12ASS-2	60SS-2	19.05	11.91	12.57	5.94	48.8	50.5	18	2.42	22.78	38.16	49.26	2.92
16ASS-2	80SS-2	25.4	15.88	15.75	7.92	62.7	64.3	24	3.25	29.29	68.04	85.08	5.15
20ASS-2	100SS-2	31.75	19.05	18.9	9.53	76.4	80.5	30	4	35.76	106.2	131.64	7.8
24ASS-2	120SS-2	38.1	22.23	25.22	11.1	95.8	99.7	35.7	4.8	45.44	152.4	188.94	11.7
28ASS-2	140SS-2	44.45	25.4	25.22	12.7	103.3	107.9	41	5.6	48.87	206.88	256.5	15.14
32ASS-2	160SS-2	50.8	28.58	31.55	14.27	123.3	128.1	47.8	6.4	58.55	272.16	337.44	20.14
36ASS-2	180SS-2	57.15	35.71	35.48	17.46	138.6	144.4	53.6	7.2	65.84	336.3	417	29.22
40ASS-2	200SS-2	63.5	39.68	37.85	19.85	151.9	158.8	60	8	71.55	424.56	526.44	32.24
48ASS-2	240SS-2	76.2	47.63	47.35	23.81	183.4	190.8	72.39	9.5	87.83	612.36	753.18	45.23

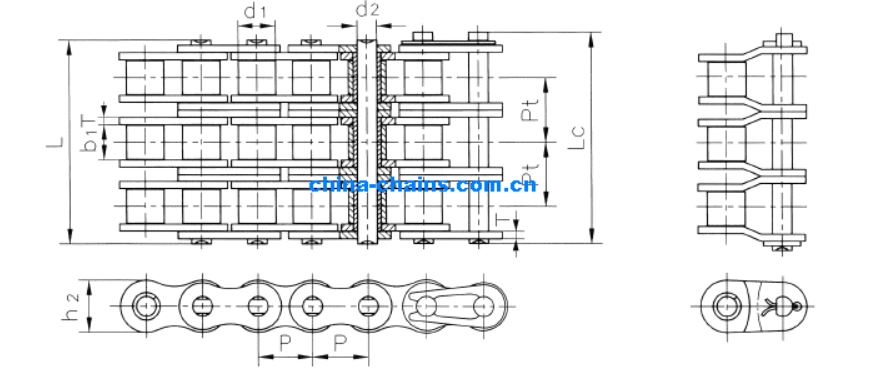

Triplex Stainless Steel Roller Chains &bushing chains

Stainless Steel Roller Chains

DIN ISO Chain No.	ANSI Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length		Inner plate depth	Plate thickness	Transverse pitch	Ultimate tensile strength	Average tensile strength	Weight per meter
		P	d1(max)	b1(min)	d2(max)	L(max)	Lc(max)	h2(max)	T(max)	Pt	Q(min)	Q0	q
		mm	mm	mm	mm	mmm	mm	mm	mm	mm	kN	kN	kg/m
*04CSS-3	*25SS-3	6.35	3.3	3.18	2.31	21	21.5	6	0.8	6.4	6.3	7.56	0.44
*06CSS-3	*35SS-3	9.525	5.08	4.77	3.58	32.7	33.5	9	1.3	10.13	14.22	17.16	1.05
08ASS-3	40SS-3	12.7	7.95	7.85	3.96	45.4	46.6	12	1.5	14.38	25.38	30	1.9
10ASS-3	50SS-3	15.875	10.16	9.4	5.08	57	58.5	15.09	2.03	18.11	39.96	46.68	3.09
12ASS-3	60SS-3	19.05	11.91	12.57	5.94	71.5	73.3	18	2.42	22.78	57.24	66.66	4.54
16ASS-3	80SS-3	25.4	15.88	15.75	7.92	91.7	93.6	24	3.25	29.29	102.06	119.04	7.89
20ASS-3	100SS-3	31.75	19.05	18.9	9.53	112.2	116.3	30	4	35.76	159.3	185.76	11.77
24ASS-3	120SS-3	38.1	22.23	25.22	11.1	141.4	145.2	35.7	4.8	45.44	228.6	262.32	17.53
28ASS-3	140SS-3	44.45	25.4	25.22	12.7	152.2	156.8	41	5.6	48.87	342.72	355.98	22.2
32ASS-3	160SS-3	50.8	28.58	31.55	14.27	181.8	186.6	47.8	6.4	58.55	408.24	468.36	30.02
36ASS-3	180SS-3	57.15	35.71	35.48	17.46	204.4	210.2	53.6	7.2	65.84	504.42	590.16	38.22
40ASS-3	200SS-3	63.5	39.68	37.85	19.85	223.5	230.4	60	8	71.55	636.84	730.68	49.03
48ASS-3	240SS-3	76.2	47.63	47.35	23.81	271.3	278.6	72.39	9.5	87.83	918.54	1053.9	71.6
