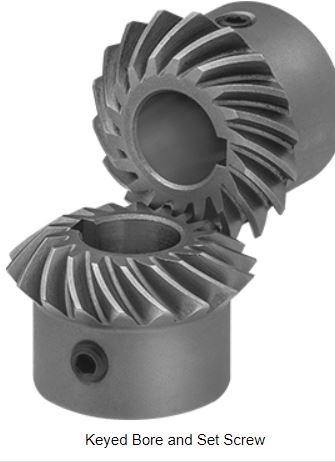

Spiral bevel gears are bevel gears with helical teeth positioned in a 90-degree angle. The teeth are designed with a slight curve to provide better flexibility and traction. Although they can be considered a hypoid gear, they have no offsets, which indicates they will not slip during operation. This ensures smooth, reliable transmission ideal for high-speed, high-torque applications.
Spiral Bevel Gears Are Ideal for High-Volume Applications
The modified helical teeth of spiral bevel gears create dependable, tooth-to-tooth traction that minimizes backlash and prevents the gears from slipping. The gears are carefully spaced to allow lubricants to be spread evenly. The spiral bevel gears in a gearbox are precisely adjusted via a unique, adjustable locknut design.
Spiral bevel gears are designed for applications that require high speed and high torque power. They can help cut consumer costs by providing long-lasting performance with minimal need for repairs or replacements. With spiral bevel gears, there is no need for offsets and a significantly reduced risk of overheating. Curved teeth and deeper traction between those teeth ensures greater asset availability to improve flexible performance and extend equipment life.
