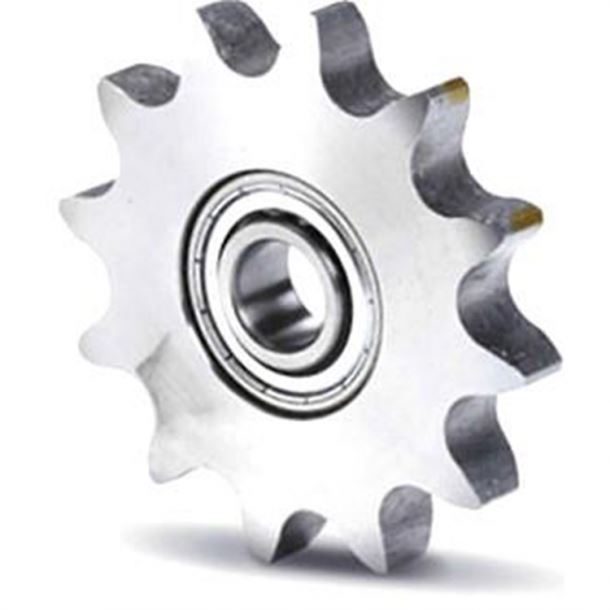

Stainless Steel Idler Sprocket

standard SUS (stainless steel) idler sprocket holds tension at the appropriate level during roller chain transmission. This product is made of stainless steel having excellent corrosion resistance and durability. The stainless steel bearing is located in the center of the sprocket

Send Inquiry

Product Description

stainless steel Idler Sprocket

No.	No. of Teeth	Inner Di- ameter D	Outer Di- ameter Do	Pitch Diameter Dp	Tooth Width T	Boss BD	Total Width BL	Used Bearing SUS	Weight kg
16	10	54	48.82		38	14	6000ZZ	0.12
35C	12	4.3	6001ZZ	0.11
	18	15	60	54.85		44	17	6202ZZ	0.17
21	17	69	63.91	53	19	6203ZZ	0.25
25	20	81	76	60	21	6204ZZ	0.34
	13	10	59	53.07		38	14	6000ZZ	0.16
40C	12	7.2	6001ZZ	0.15
	15	15	67	61.08		44	17	6202ZZ	0.2
17	17	76	69.12	53	19	6203ZZ	0.31
19	20	84	77.16	60	21	6204ZZ	0.41
	12	12	69	61.34		43	16	6201ZZ	0.22
50C	13	15	74	66.34	8.7	44	17	6202ZZ	0.24
	15	17	84	76.35		53	19	6203ZZ	0.38
	17	20	94	86.39		60	21	6204ZZ	0.5
	11	12	76	67.62		44	16	6201ZZ	0.27
60C	15	11.7	17	6202ZZ	0.28
	13	17	89	79.6		53	19	6203ZZ	0.47
14	20	95	85.61	60	21	6204ZZ	0.57
	9	15	85	74.27		44	17	6202ZZ	0.39
80C	10	17	93	82.2	14.6	52	19	6203ZZ	0.58
	11	20	102	90.16		60	21	6204ZZ	0.7
