PTO Shaft & Gearbox For Snow Blowers

Send Inquiry

Product Description

Snow Blower

Snowblower is a machine used to clean snow, usually used outdoors in winter. It typically consists of an engine and a rotating drum that pushes snow to one side to remove it from a driveway, street, or other road surface. Snowblower is commonly used to clean the road surface in heavy snow situations, such as after heavy snow or when roads are blocked. It can clear a large amount of snow in a short time, making it easier for people to pass.

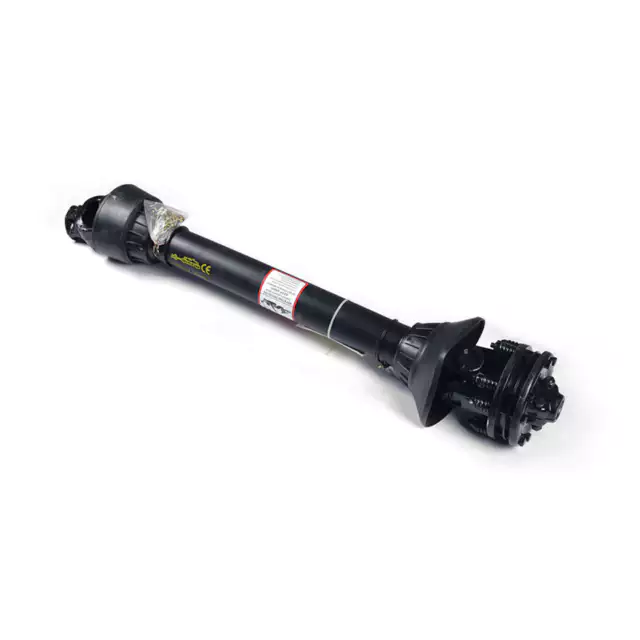

PTO Shaft for Snowblower

Snowblower typically uses PTO shaft to drive the drum to rotate, thereby achieving the function of clearing snow.
When the PTO shaft starts rotating, it transmits power to the drum, which drives the drum to rotate. The rotation of the roller will push the snow towards the side of the machine in order to remove the snow. At the same time, Snowblower can also control the rotation speed and direction of the roller through the control handle to better clean up snow.
In Snowblower, the PTO shaft typically transmits power through a turbine and gearbox. The turbine converts the mechanical energy output from the engine into rotational energy, and the gearbox connects the output of the turbine to the drum. In this way, PTO shaft ensures that Snowblower can efficiently clean up snow and control the rotation speed and direction of the drum when needed.

Series	Description	Bore	Torque
CAT 3 2300	Base Assembly- no rear yoke, universal joint	1.375-6
CAT 3 BYP4	Complete, Quick disconnects	1.375-6	1700mm
CAT 4 2400	Base Assembly- no rear yoke, universal joint	1.375-6	2500mm
CAT 4 BYP6	Base Assembly- no rear yoke	1.375-6	2700mm
CAT 5 2500	Base Assembly- no rear yoke, universal joint	1.375-20	2920mm

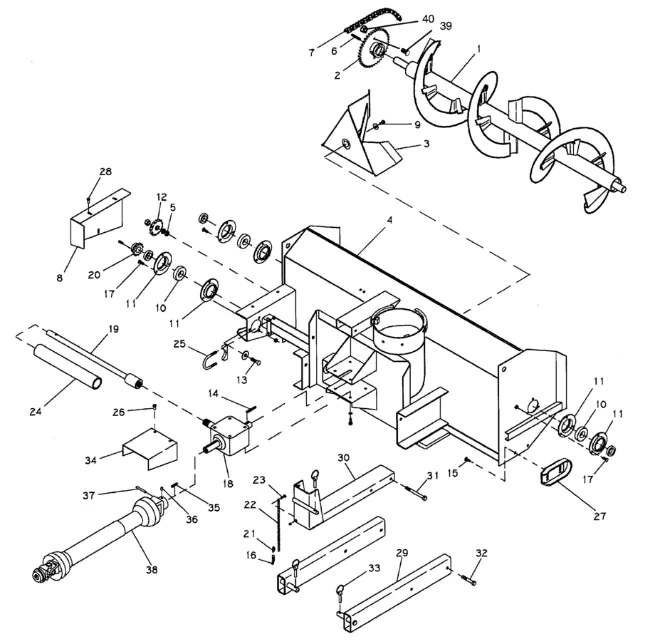

Composition of Woods Snow Blower

1 - AUGER WELDMENT	2 - SHEAR SPKT 5040X1.25X.3125	3 - FAN WELDMENT, SNOWBLOWER	4 - Housing Weldment	5 - WSHR, 1/2 X 1 X 1/4 FLT Z	6 - Key, 1/4 x 1/4 x 1	7 - chain, 50-1 X 94 INCL. CONN	8 - chainCASE SHIELD (NARROW)	9 - BOLT, HEX 1/2 NC X 1 GR5 ZP FU	10 - BEARING, INSERT 1-1/4
11 - 3 HOLE FLANGE 62MM-3B	12 - 13T 50-1 IDLER 1/2 B BRG.	13 - 1/2 NC x 2 Carriage Bolt	14 - Key, 1/4 x 1/4 x 2-1/2	15 - 3/8 NC x 1 Carriage Bolt	16 - 3/8 inch Round Eye Swivel Spring Snap	17 - BOLT CRG 3/8 NC	18 - GEARBOX 1:1 3-WAY SM SNWBLWR	19 - JACKSHAFT WELD	20 - DRIVE SPROCKET
21 - 1/8 inch Quick Link	22 - chain, PTO Hook Up	23 - 1/4 NC x 1 Carriage Bolt	24 - SHAFT SHIELD 1-3/4 X 16-3/8	25 - Muffler Clamp	26 - BOLT HH 3/8 NC X 3/4 GR5 ZP	27 - SKID /MR	28 - HHCS 5/16 NC X 3/4 FLANGE	29 - Lower 3 Pt. Weldment	30 - Upper 3 Pt. Weldment
31 - 1/2 NC x 5 Hex Bolt	32 - 1/2 NC x 3 Hex Bolt	33 - PIN, KLIK 7/16	34 - SHIELD, GEARBOX	35 - Key, 1/4 x 1/4 x 1-1/2	36 - 5/16 NC x 5/16 Socket Set Screw	37 - 5/16 x 1-3/4 Roll Pin	38 - PTO SHAFT, 1-3/8, 6SPL 540	39 - Shear Bolt, 5/16 NC x 1 #1110223	40 - NUT, LOCK 5/16 NC

Gearbox: Gearbox is an important component of Woods Snow Blower. It is usually a metal box used to transmit the power of the engine to the rear output shaft. Gearboxes typically have three or four gears to accommodate different speed and load requirements.

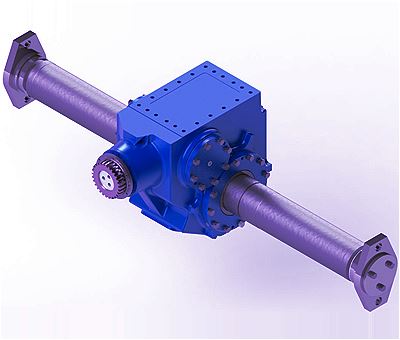

Gearbox for Snow Blower
Output shaft: The output shaft is another important component of the Woods Snow Blower. It is usually connected to the output shaft of the gearbox and transmits power to the rear PTO (Power Take off) shaft through a long transmission shaft.
PTO shaft: PTO shaft is another important component of Woods Snow Blower. It is typically connected to the engine output shaft and transmits power through a transmission shaft to subsequent cleaning equipment such as brushes, blades, or rotary sieves.
Cleaning equipment: The cleaning equipment of Woods Snow Blower typically includes brushes, blades, or rotary sieves for cleaning snow. These devices are typically located at the rear of the machine and connected to the PTO shaft via a long transmission shaft.
