Planetary Wheel Drive

Planetary gear drives (epicyclic gears) are the favoured choice for applications requiring a compact gear solution that is capable of maintaining optimal high torque outputs.

We stock a comprehensive range of world renowned Raydafon products; prestigiously designed to accept standard hydraulic motors, with the option of a shaft input version suitable for a wide range of shaft, wheel and spindle drive applications.

A customer favourite from our planetary gear drives range is the Raydafon-speed, compact, planetary wheel drive transmission; boasting low and high speed functions and unbeatable long-life performance, ideal for winches and mobile equipment.

With capacities ranging from 845Nm to 332,000Nm, our innovative range of planetary Torque Hub® transmissions are the leading solution for a variety of industrial and mobile applications.

PLANETARY GEAR DRIVES PRODUCT RANGE

Torque Hub Wheel Drive< 332,000Nm torque capacity

Torque Hub Shaft Drive< 113,000Nm torque capacity

Torque Hub SpindleDrive< 332,000Nm torque capacity

Torque Hub 2-Speed Drive< 36,000Nm torque capacity

Torque Hub Compact Wheel Drive< 130,000Nm torque capacity

Bespoke Planetary Gear UnitsDesigned & manufactured to suit customer specification

APPLICATIONS

Wheel drives

Track drives

Slew drives

Winch drives

Hoist drives

Mixing

Conveyors

Auger & drilling drives

Cutter head drives

Pumps

Jack up rigs

Coil tubing injectors

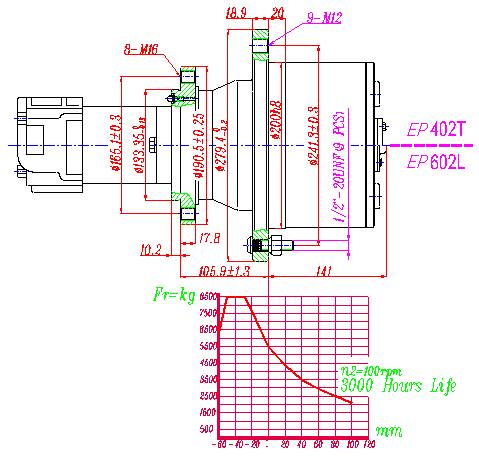

EP602L2 Wheel Drives T2max=7000N.m

Technical specification

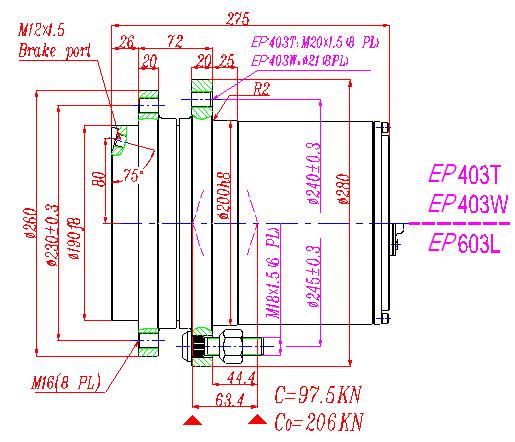

EP603L2 Wheel Drives T2max=7000N.m

Technical specification
