Ground Spur Pinion Shafts

Send Inquiry

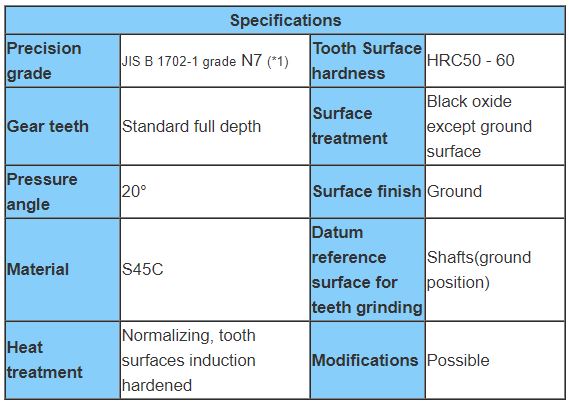

Product Description

Module : 1.5 – 10

Material : S45C

Hardening : Induction hardening

Tooth finish : Ground teeth

Grade : JIS N7

Ground spur gear with integral shaft – secondary operation on the shaft allows direct mounting into a bearing

We are a global leader in the technology of gearing products and services which include machinery for the production, finishing and testing of gears. Our company is a known manufacturer, supplier and exporter of CNC Rotary Table, Gear Box, Precision Gears, Helical Gears, Worm Wheels, Gear Racks, Automotive Shafts, Machinery Sprockets, Bevel Gears, Belt Driven Pulleys & many more. We also provide CNC Machining Services at comparatively low price. We are exporting our products to USA. Our offered range of product is highly durable, rigid and robust in construction. They are made to satisfy the needs of machining industry. Better precision, high performance, supreme quality and low price of our assortment of machining products makes them exceptional in their segment and thus makes us uncommon. We provide our customers with a facility of customization in terms of packaging and shipment. We have also introduced a number of payment methods such as cash, cheque and DD using which our customers can choose to make payments. We ship consignments via air, sea and road.

Ground Spur Pinion Shafts

Catalog No.	Module	No. of teeth	Profile shift	Shape	Shaft dia. (L)	Shaft length (L)	Pitch dia.	Outside dia.	Face width	Shaft dia. (R)	Shaft length (R)	Total length	Allowable torque(kgf·m)	Allowable torque(kgf·m)	Backlash low	Backlash up	Weight
Catalog No.	Module	No. of teeth	coefficient	Shape	A'	F'	C	D	E	A	F	G	Bending strength	Surface durability	(mm)	(mm)	(kg)
TSGS1.5-10	1.5	10	0.5	S7	12.2	25	15	19.35	15	12.2	100	140	1.3	0.38	0.08	0.16	0.14
TSGS1.5-11	1.5	11	0.5	S7	13.7	25	16.5	20.85	15	13.7	100	140	1.48	0.47	0.08	0.16	0.17
TSGS1.5-12	1.5	12	0	S7	13.7	25	18	21	15	13.7	100	140	1.02	0.48	0.08	0.16	0.17
TSGS1.5-13	1.5	13	0	S7	15.2	25	19.5	22.5	15	15.2	100	140	1.23	0.56	0.08	0.16	0.21
TSGS2-10	2	10	0.5	S7	16.2	30	20	25.8	20	16.2	120	170	3.08	0.93	0.11	0.21	0.3
TSGS2-11	2	11	0.5	S7	18.2	30	22	27.8	20	18.2	120	170	3.5	1.12	0.11	0.21	0.38
TSGS2-12	2	12	0	S7	18.2	30	24	28	20	18.2	120	170	2.41	1.15	0.11	0.21	0.38
TSGS2-13	2	13	0	S7	20.2	30	26	30	20	20.2	120	170	2.92	1.35	0.11	0.21	0.46
TSGS2.5-10	2.5	10	0.5	S7	20.2	35	25	32.25	25	20.2	135	195	6.01	1.83	0.11	0.21	0.54
TSGS2.5-11	2.5	11	0.5	S7	22.7	35	27.5	34.75	25	22.7	135	195	6.84	2.24	0.11	0.21	0.68
TSGS2.5-12	2.5	12	0	S7	22.7	35	30	35	25	22.7	135	195	4.71	2.28	0.11	0.21	0.68
TSGS2.5-13	2.5	13	0	S7	25.2	35	32.5	37.5	25	25.2	135	195	4.75	2.23	0.11	0.21	0.83
TSGS3-10	3	10	0.5	S7	24.2	40	30	38.7	30	24.2	150	220	10.4	3.19	0.11	0.21	0.89
TSGS3-11	3	11	0.5	S7	27.2	40	33	41.7	30	27.2	150	220	9.85	3.26	0.11	0.21	1.11
TSGS3-12	3	12	0	S7	27.2	40	36	42	30	27.2	150	220	6.78	3.32	0.11	0.21	1.11
TSGS3-13	3	13	0	S7	30.2	40	39	45	30	30.2
