When the number of teeth required to achieve a given ratio becomes so small that the gear cannot have a bore, it is necessary to use a pinion shaft. Raydafon offers 303 stainless steel spur pinion shafts in a solid-on-shaft configuration with small numbers of teeth for higher ratios. These pinion shafts are designed to mesh with standard spur gears and racks.
For the realization of complete rack and pinion drives Raydafon offers, next to the world's wide extensive program of high-quality racks, a wide range of matching gears and pinion shafts. The program of Eve-Power pinion and pinion shafts extending from module 1.5 to module 12, oblique and straight teeth, soft or hardened and ground. With the possible combinations can be almost all conceivable applications optimally realized.
The following Pinion Shaft specifications define our standard selection and routine customization options:
Diametral Pitch – 24 to 200
Circular Pitch - 1/10” (.100)
Shaft Diameter - 1/8”, 3/16”, 1/4”
Standard Shaft Length - 3”
Standard Material - 303 stainless steel

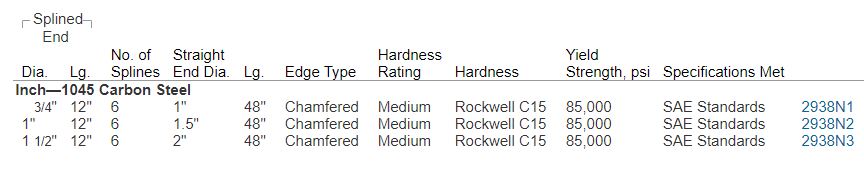

Spline Shaft
