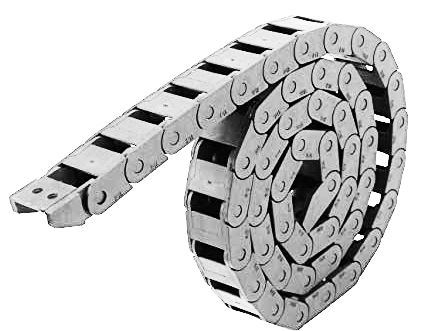

Drag Chain

Send Inquiry

Product Description

Our system offers you a complete system solution for many fields of operations, such as cable drag chains, guide molds, leads, strain relief, and assembling. Our chains have proven their quality and longevity under extreme constant loads and environmental influences. Our chains systems are quickly deliver-able at reasonable prices.
If you have any further questions as to special fields of operations, please do not hesitate to contact our engineers for detailed information

Quickly select the most appropriate cable drag chain for your application

User friendly configuration of mounting components such as separators, shelves, chain end brackets and strain relief
Automatic generation of a detailed parts list for the cable drag chain
Automatic generation of the 3D-CAD model using a direct interface with Cadenas
Saving & loading your configurations
Intuitive user interface / user friendliness

Drag Chain

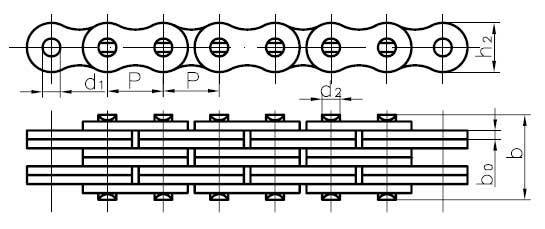

Chain No.	P	P	Plates Lacing	bo	d1	d2	h2	b	Q	q
Chain No.	in	mm		mm	mm	mm	mm	mm	KN	kg/m
AL422	1/2"	12.7	2¡Á2	1.52	4.01	3.96	10.3	8.4	17	0.35
AL444			4¡Á4					14.8	34	0.67
AL466			6¡Á6					21.2	51	1
AL522	5/8"	15.875	2¡Á2	2.05	5.13	5.08	13	10.4	28.3	0.63
AL544			4¡Á4					18.9	56.6	1.2
AL566			6¡Á6					27.4	84.9	1.75
AL622	3/4"	19.05	2¡Á2	2.4	6	5.94	15.6	12.2	39.3	0.93
AL644			4¡Á4					22.1	78.6	1.6
AL666			6¡Á6					32	117.9	2.5
AL822	1"	25.4	2¡Á2	3.2	8.01	7.94	20.55	16.4	69.5	1.54
AL844			4¡Á4					29.8	139	3.3
AL866			6¡Á6					43.2	208.5	4.9
AL1022	11/4"	31.75	2¡Á2	4	9.6	9.53	25.85	19.5	103	2.37
AL1044			4¡Á4					36.7	206	4.9
AL1066			6¡Á6					53.2	309	7.3
AL1222	11/2"	38.1	2¡Á2	4.8	11.18	11.11	31.2	24	140	3.65
AL1244			4¡Á4					43.8	280	7.05
AL1266			6¡Á6					63.6	420	10.5
AL1444	13/4"	44.45	4¡Á4	5.6	12.78	12.7	36.2	51.1	370	10.34
AL1466	13/4"	44.45	6¡Á6	5.6	12.78	12.7	36.2	74.3	555	13
AL1644	2"	50.8	4¡Á4	6.4	14.36	14.29	41.6	58.2	465	12.98
AL1666	2"	50.8	6¡Á6	6.4	14.36	14.29	41.6	84.6	697.5	18
