Worm Reducer For Rubber Tire Curing Press

Worm Reducer for Rubber Tire Curing Press

Send Inquiry

Product Description

Worm Reducer for Rubber Tire Curing Press

Features of Worm Reducer for Rubber Tire Curing Press

Worm reducer for rubber tire curing press adopts plane enveloping toroidal worm gearing,Which makes it superior to other worm transmissions in many aspects,such as high loading Capacity,compact structure,high efficiency,smooth running, low running noise,long service Life,and so on.

Hints for users

1.Only N320 worm gear oil or Mobil SHC 643 synthetic gear oil can be used to lubricate these gear reducers.

2.The dimensions and specifications are subject to change without prior notice.

Worm Reducer For Rubber Tire Curing Press

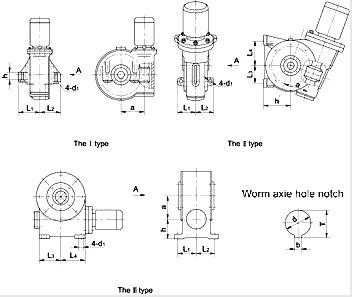

Specifications of Worm Reducer for Rubber Tire Curing Press

a(mm)	I	Z1	Z2	D1	Motor		Type	Motor
a(mm)	I	Z1	Z2	D1	t/min	kw	Type	h	L1	L2	L3	L4	d1	d	b	T
250	80	1	80	80	660	11	Ⅱ	300	200	200	108	298	32	100	28	106.4
320	80	1	80	110	660	11	Ⅱ	320	200	200	200	300	32	105	28	111.4
360	93	1	93	95	880	7.5	Ⅰ	75	270	270	205	205	26	86	25	91.4
	93	1	93	95	880	11	Ⅲ	250	225	225	260	310	24	86	24	93.2
	79	1	79	100	880	11	Ⅰ	75	300	300	200	200	26	96	28	102.4
					660	11								96	28	102.4
					750	16								112	32	125
					600	16								112	32	125
360	104	1	104	95	880	11	1	75	270	270	203	203	20	82.5	19.3	87.4
450	65	1	65	126.5	750	25	1	350	280	280	240	240	39	132	36	140.4
