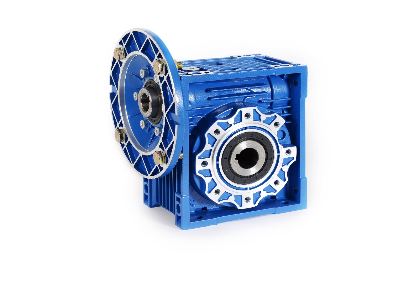

Worm gear reducer has been widely used in metallurgy, mining, transportation, water conservancy, chemical, food, beverage, textile, tobacco, packaging, environmental protection and other industries and fields of machinery and equipment mechanical deceleration devices, praised by users, is currently Modern industrial equipment is ideal for high speed ratio low noise, high stability mechanical reduction transmission control devices.
Performance characteristics:
1. The mechanical structure is compact, compact, compact and efficient;
2. Good heat exchange performance and fast heat dissipation;
3, easy to install, flexible and easy to maintain;
4. The transmission speed ratio is large, the torque is large, and the overload capacity is high;
5, stable operation, low noise, durable;
6, strong applicability, safety and reliability.
UY
| SIZE | RATIO | A | A1 | AB | AC | B | BB | BD | BE | BF | CC | H | HL | LL | Z | L |
| 133 | 5:1 10:1 15:1 20:1 30:1 40:1 50:1 60:1 | 2.12 | 4.03 | 4 | 6.03 | 4 | 2.88 | 2 | 3.25 | 1.333 | 4.66 | 1.61 | 1.72 | 5/16-18 | 0.5 | |
| 154 | 2.75 | 4.69 | 5.13 | 6.76 | 4.31 | 3.69 | 2.75 | 4.19 | 1.54 | 5.38 | 1.92 | 1.91 | 5/16-8 | 0.5 | ||
| 175 | 2.75 | 4.69 | 4.81 | 6.75 | 4.31 | 3.38 | 2.75 | 4.19 | 1.75 | 5.75 | 1.94 | 2.06 | 5/16-18 | 0.6 | ||
| 206 | 3 | 5.06 | 5.5 | 7.25 | 4.69 | 3.75 | 2.88 | 5 | 2.062 | 6.38 | 2.04 | 2.28 | 37849 | 0.6 | ||
| 237 | 3.56 | 5.44 | 6.13 | 7.78 | 5.08 | 4.06 | 2.88 | 5 | 2.375 | 6.94 | 2.07 | 2.5 | 37849 | 0.6 | ||
| 262 | 3.69 | 6.23 | 7.12 | 8.5 | 5.63 | 4.44 | 3.38 | 6.38 | 2.625 | 8 | 2.44 | 2.94 | 37849 | 0.6 | ||
| 300 | 4.5 | 5.93 | 7 | 8.5 | 10.25 | 6.75 | 5.5 | 4 | 7 | 3 | 8.88 | 2.63 | 3.25 | 7/16-14 | 0.8 | |
| 325 | 4.5 | 5.93 | 7.06 | 8.5 | 10.5 | 7.06 | 5 | 4 | 7.5 | 3.25 | 9.38 | 2.63 | 3.5 | 7/16-14 | 0.8 | |
| 375 | 5.75 | 7.42 | 8.36 | 9.5 | 11.88 | 7.75 | 6.38 | 4.75 | 8.5 | 3.75 | 10.44 | 2.81 | 3.88 | 36935 | 1 | |
| 450 | 5.63 | 8.11 | 9.59 | 10.88 | 13.16 | 8.44 | 7.38 | 5.81 | 9.56 | 4.5 | 11.94 | 2.94 | 4.5 | 38575 | 1 | |
| 516 | 6.44 | 8.92 | 10.69 | 12.5 | 13.91 | 9.06 | 7.38 | 5.81 | 11 | 5.167 | 13.75 | 3.28 | 5.31 | 38575 | 1 | |
| 600 | 7.44 | 10.7 | 11.75 | 14.5 | 15.31 | 10 | 8.13 | 6.38 | 12.75 | 6 | 16.5 | 4 | 6.5 | 38575 | 1 |
| SIZE | Input Shaft | Output Shaft | With Horizontal Base | |||||||||||
| U | HS | T×V | LT | S | LS | W×Y | LW | E | F | M | N | G | X | |
| 133 | 0.5 | 1.81 | 1/8×1/16 | 1.38 | 0.625 | 2 | 3/16×3/32 | 1.31 | 3.31 | 4.38 | 4.19 | 5.38 | 0.53 | 0.34 |
| 154 | 0.625 | 1.69 | 3/16×3/32 | 0.94 | 0.75 | 1.78 | 3/16×3/32 | 0.88 | 4.31 | 5.25 | 5.44 | 6.44 | 0.59 | 0.41 |
| 175 | 0.625 | 1.81 | 3/16×3/32 | 1.5 | 0.875 | 1.88 | 3/16×3/32 | 1 | 4.5 | 5.75 | 5.56 | 7 | 0.69 | 0.41 |
| 206 | 0.625 | 1.81 | 3/16×3/32 | 1.5 | 1 | 2 | 1/4×1/8 | 1.75 | 4.69 | 6.38 | 5.76 | 7.69 | 0.72 | 0.47 |
| 237 | 0.75 | 1.94 | 3/16×3/32 | 1.31 | 1.125 | 2.37 | 1/4×1/8 | 1.38 | 4.88 | 7.06 | 6.19 | 8.5 | 0.75 | 0.47 |
| 262 | 0.75 | 2.31 | 3/16×3/32 | 1.88 | 1.125 | 2.5 | 1/4×1/8 | 2 | 5.25 | 8 | 6.5 | 9.25 | 0.75 | 0.53 |
| 300 | 0.875 | 2.26 | 3/16×3/32 | 1.31 | 1.25 | 3.25 | 1/4×1/8 | 2.25 | 5.88 | 8.44 | 7.36 | 10.16 | 0.88 | 0.53 |
| 325 | 0.875 | 2.31 | 3/16×3/32 | 1.65 | 1.375 | 3.25 | 5/16×5/32 | 2.41 | 6.13 | 9.5 | 7.75 | 11.12 | 0.88 | 0.53 |
| 375 | 1 | 2.91 | 1/4×1/8 | 1.75 | 1.625 | 3.5 | 3/8×3/16 | 2.19 | 7 | 10.38 | 8.63 | 12 | 0.94 | 0.59 |
| 450 | 1.125 | 3.45 | 1/4×1/8 | 2.5 | 1.625 | 3.66 | 3/8×3/16 | 2.5 | 7.63 | 12.13 | 9.33 | 13.88 | 1.13 | 0.66 |
| 516 | 1.25 | 3.75 | 1/4×1/8 | 2.56 | 2 | 4.16 | 1/2×1/4 | 2.81 | 8.38 | 14.13 | 10.38 | 16.38 | 1.13 | 0.78 |
| 600 | 1.5 | 3.75 | 3/8×3/16 | 2.94 | 2.25 | 4.56 | 1/2×1/4 | 3.38 | 9.5 | 16.5 | 12 | 19 | 1.25 | 0.91 |
