Worm Gear Box Assembly

Worm Gear Box Assembly

Available in three standard output ratios and with two output shaft diameter options, it’s easy to find the Raydafon right miniature gearbox for your needs. Each Raydafon model worm gear box assembly provides proportionally high torque values (1.4 NM at 3,000 RPM) with very low backlash (maximum 2° backlash).

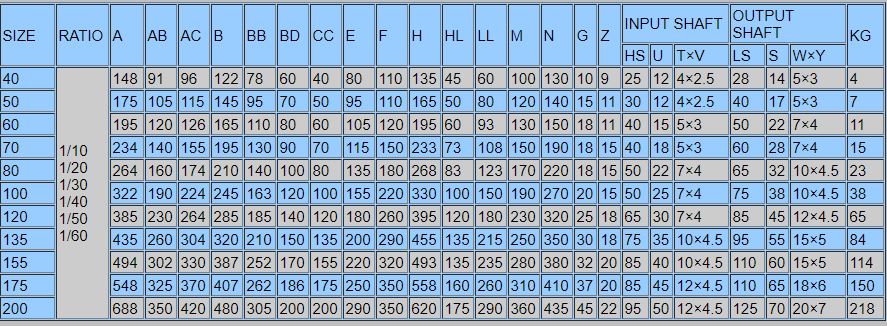

The Raydafon Advantage

High efficiency miniature right angle gearbox (up to 90% at 1,000 RPM)

Three gear ratios available: 5:1, 10:1, and 20:1

Extremely compact footprint: 1.5” x 1.5” x 1.08”

12.5 inch-lbs. output torque

Very low backlash (2° backlash maximum)

90° output angle

Maximum input speed: 3,000 RPM

Machined aluminum housing with hardened steel gears and oil-impregnated bronze bearings

Permanently lubricated

Made in the China.
