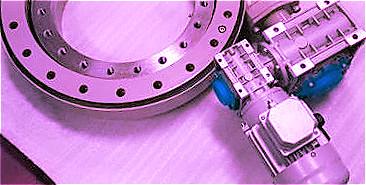

worm gear box for solar tracking system Production Description:
Product Advantage:
1)Strong output torque and holding load
2)Top tracking precision
3)Higher corrosion resistance and sealing effective
Application: PD17 Precision vertical slewing drive,which is a good solution to solar..
| Model: | SD12 | Place of Origin | Wuxi,China |
| Brand | Sunslew | Type | Enclosed |
| Material | 42CrMo,50Mn | Output Torque | 7.5K N.m |
| Tilting Moment Torque | 54.3K N.m | Holding Torque | 43K N.m |
| Static Axial Rating | 475KN | Static Radial Rating | 190 KN |
| Dynamic Axial Rating | 114.5KN | Dynamic Radial Rating | 100KN |
| Gear Ratio | 3.250694444 | Efficiency | 0.4 |
