Duplex Worm Gear Wheels

Duplex Worm Gear Wheels

Duplex worms and worm wheels must be mated in a predetermined orientation, which is indicated by the arrows.

Therefore, the arrow on the wheel does not indicate the mounting direction, but the rotating direction.

Besides the above explained duplex method, there are various possibilities to adjust the backlash of worm gears:

variation of center distance, by rotating an eccentric hub, in which the worm shaft and/or the worm gear wheel are cradled

axial shifting of a conical worm

division of the worm in two halves , to be rotated or shifted relatively to each other. (system Ott)

division of the wheel in two disks , to be rotated relatively to each other.

However all these methods demonstrate substantial disadvantages:

Duplex gearings do not create these kind of problems.

They permit an always geometrically accurate teeth contact and beyond that, very delicate backlash adjustment. Neither the evolved contact area, the load-carrying capacity nor the actual efficiency are affected. In addition as duplex teeth are executed as involute gear they are insensitive in regards to modifications of the center distance, e.g. caused by worm shaft deflections.

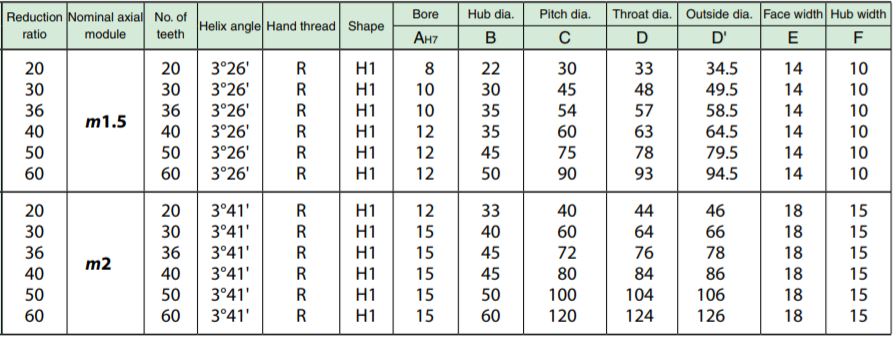

Specifications

Precision grade grade 1

Reference

section of gear Rotating plane

Gear teeth Standard full depth

Normal

pressure angle 17° 30'

Material CAC702
