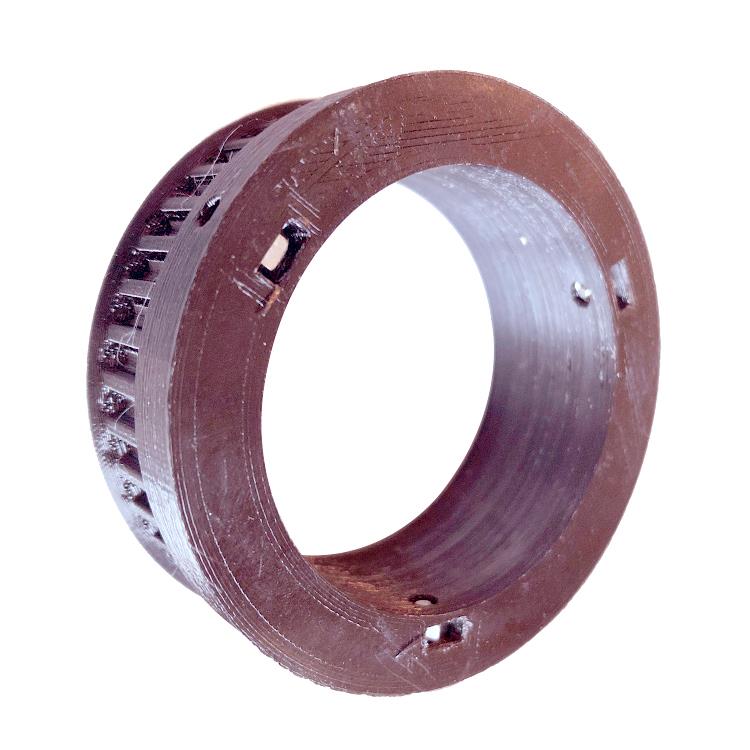

Toothed Belt Pulley

toothed belt pulley

It is also possible to print other ratios if the space conditions make this necessary. In this case you can adjust the encoder so that the pulse rate fits again afterwards.

Up to 150mm outside diameter are possible, the inside diameter can be manufactured according to your wishes. The inside diameters are grated or turned out, so they are afterwards exactly made to measure.

Material: PETG, printed with an Ultimaker 2+

attachment:

• Clamping fit with 3x M3 grub screws (arranged at an angle of 120°, pressed-in M3 nuts serve as thread)

• or keyway (please specify desired dimension)

Important: Please indicate the approximate shaft dimension spindle shaft - encoder shaft, as well as the desired shaft diameter spindle shaft and encoder shaft. These details can be entered by e-mail or in the comment field at the end of the order..
