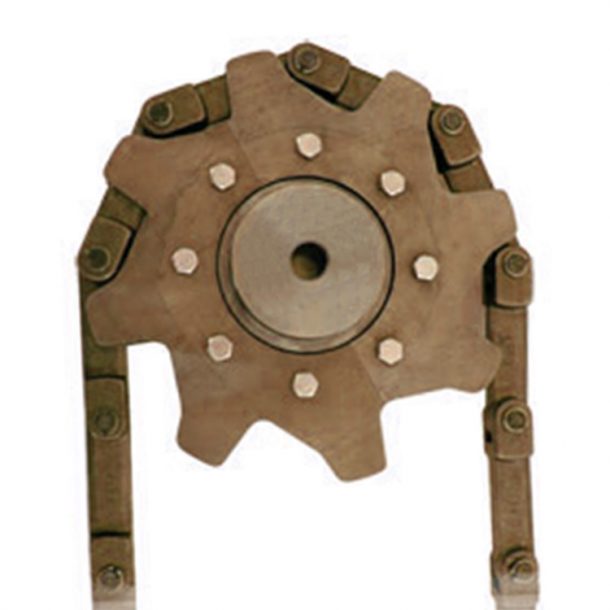

Round Link Sprockets

The sprockets are often delivered in a separable design, the advantage is that the segments can be replaced without having to first remove the chain or dismount the shaft. Sprockets are supplied without teeth to be reversing wheels. Also, sprocket wheels can be provided as a so-called pocket wheel. Sprockets are used in clean environments, for example in the food industry.

Send Inquiry

Product Description

round link sprockets

pitch	No. of teeth	pitch circle Ø	tip circle Ø	rim width	pilot bore	hubØ	hub-dia.	weight
p		D1	D	BK	pilot bore	DN	hub-dia.	kg/pcs.
mm		mm	mm	mm	mm	mm	mm	kg/pcs.
16	4	41	56	23	–	40	30	0,30
16	8	81	96	23	–	50	35	1,00
16	12	122	140	23	–	50	40	1,50
16	15	153	165	23	–	50	40	2,40
16	18	183	200	23	–	50	40	2,60
18,5	6	71	95	32	–	50	50	1,20
18,5	7	82	110	32	–	60	50	1,90
18,5	8	94	120	32	–	50	50	2,00
18,5	10	118	135	32	–	60	50	2,40
18,5	12	141	165	32	–	60	50	3,20
18,5	14	165	185	32	–	65	50	3,90
18,5	15	177	200	32	–	65	50	3,20
18,5	16	188	215	32	–	60	50	3,80
18,5	18	212	235	32	–	60	50	5,00
18,5	19	224	250	32	–	60	55	5,00
18,5	20	236	260	32	–	60	50	4,50
18,5	24	283	300	32	–	60	50	5,20
18,5	26	306	335	32	–	70	60	7,20
18,5	28	330	360	32	–	70	60	7,10
18,5	30	353	380	34	–	70	60	9,00
18,5	32	377	400	34	–	70	60	10,50
18,5	34	400	435	34	–	70	60	10,00
18,5	36	424	450	34	25	80	70	12,00
18,5	38	448	480	34	25	80	70	14,00
18,5	40	470	500	38	25	100	75	17,00
18,5	43	503	530	38	25	90	80	18,00
18,5	45	530	570	38	25	90	75	19,00
18,5	50	589	620	38	25	100	70	25,00
18,5	60	707	732	40	30	100	90	31,00
18,5	65	766	810	40	35	155	75	46,00
