Rack Pinion

rack pinion

High precision helical rack for smooth, quiet operationPrecision pinions easily mount to GAM gearboxesPinion can be pre-mounted to the gearboxRacks and pinions are matched to GAM gearboxes for optimized system performanceGAM engineering expertise to select the best solution for your application

The GAM Helical Rack and Pinion series, along with our broad gearbox offering, provide a complete linear solution. Use our motion control engineering expertise to select the rack and pinion and match it with the right gearbox for your application.

Features

• High precision helical rack for smooth, quiet operation

• Precision pinions easily mount to GAM gearboxes

• Pinion can be pre-mounted to the gearbox

• Racks and pinions are matched to GAM gearboxes for optimized system performance

• GAM engineering expertise to select the best solution for your application

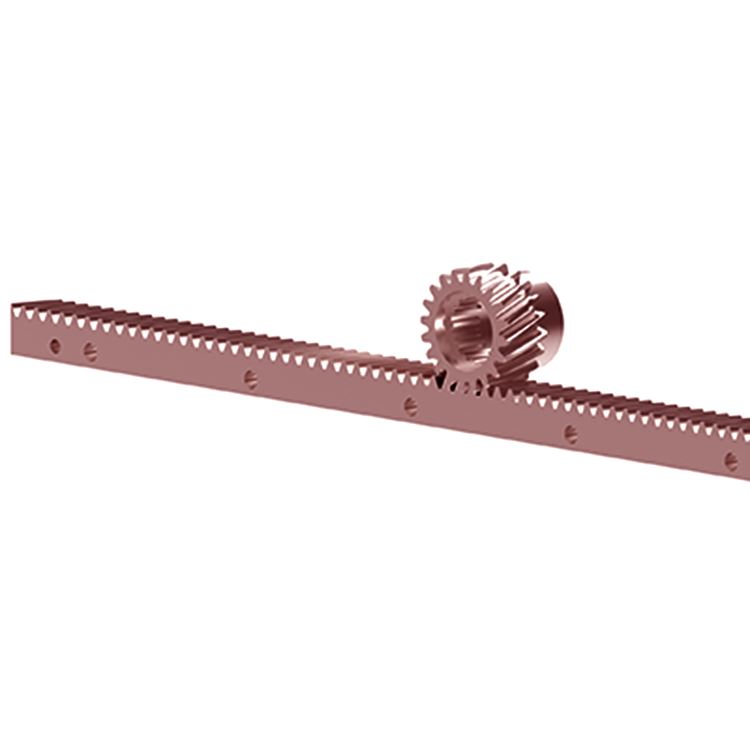

GAM Helical Rack

GAM Helical Pinions

GAM Pinions are design to mount to GAM Gearboxes

• 5 styles

• ISO Q6

• Ground and Induction Hardened

• Work with GHGH (Q6) or GHFH (Q10) Rack

Pinion Type	Spline	Keyed	Welded Flange	Bolt Through	Shaft
Series	PHGH-S	PHGH-K	PHGH-W	PHGH-B	PHGH-D
Module	43865	43864	43865	2	43865
Pitch	34.2-88.08 mm	38.2-70.03 mm	33.95-84.88 mm	56.8-86.4 mm	34.2-88.1 mm
Number of Teeth	15-23	16-40	16-20	26-40	15-23
Mounts To	SPH-F 060-180 Helical Inline Gearbox	EPL-A Inline Planetary EPR-A Right Angle Planetary	SPH-F Inline Gearboxes DS-F Right Angle Gearboxes	EPL-F Inline Gearbox EPR-F Right Angle Planetary Gearbox	DS-H Right Angle Gearbox
Technical Specs and CAD Models	Spline Pinions	Keyed Pinions	Welded Flange Pinions	Bolt-Through Pinions	Shaft Pinions
