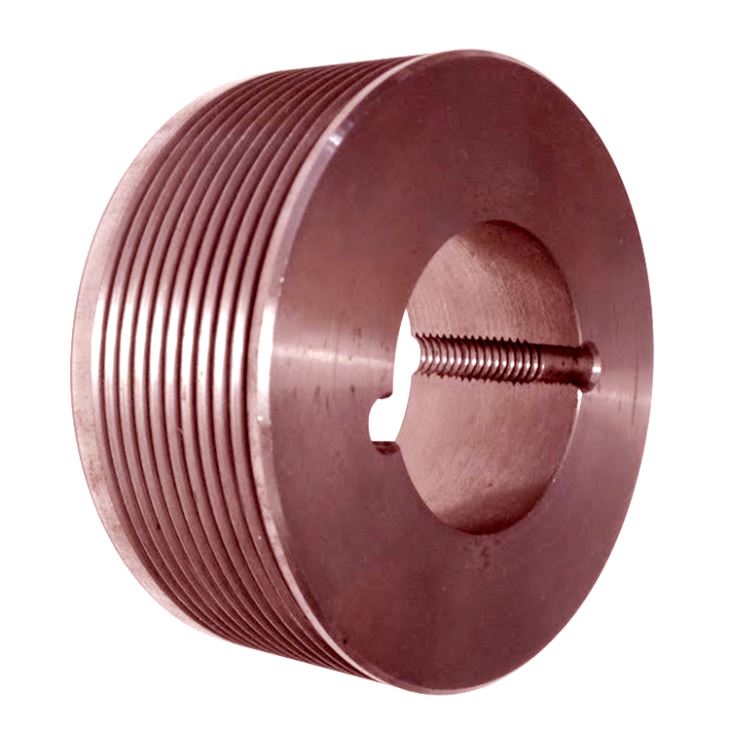

Poly V Sheave

Poly-V Pulley and Belt drives are ideal where you have space restrictions, high ratio or high torque drives. With only one belt, tensioning is easy and you do not have to worry about matching belts. They will also run quieter than timing pulley and chain drives and do not slip like standard V-Pulleys.

Send Inquiry

Product Description

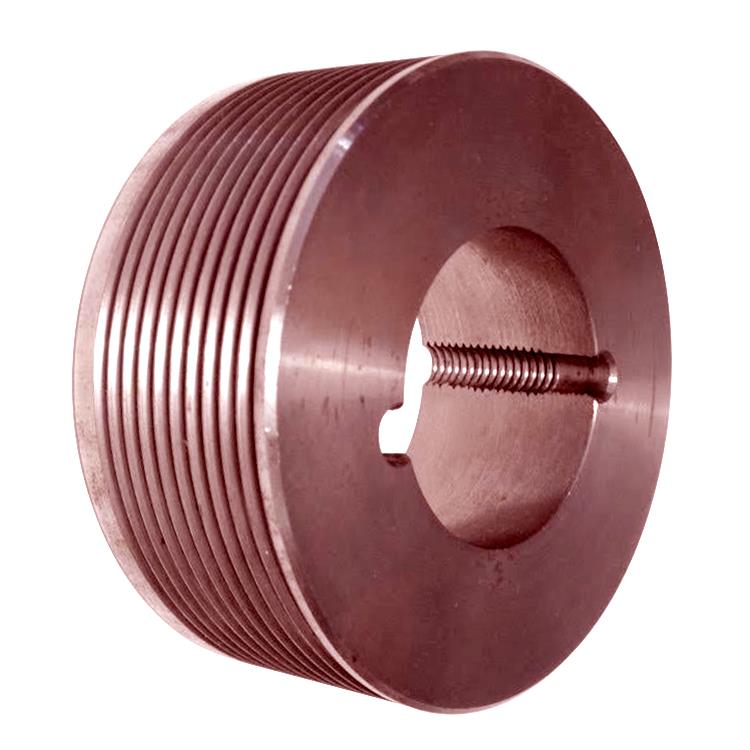

Poly V Sheave

Manufactured from superior quality cast iron, they cater to drives up to 200 kW with speed ratios up to 1: 7. Fenner Poly V Pulleys with its taper lock system are ‘Shelf to Shaft’ ready to fix.

Poly V Sheave

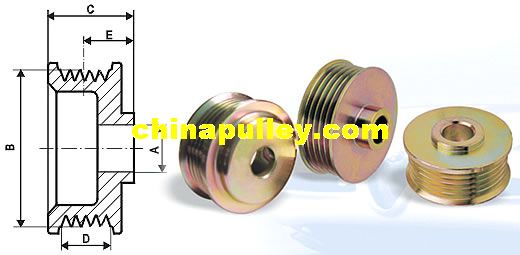

ITEM NO.	TN	BORE(A)	O.D.(B)	WIDTH(C)	TW(D)	BTD(E)
HL-0019	5	17	60	39	18	19.69
HL-0020	5	17	53.8	34	18	14.72
HL-0021	5	17	60.2	26.4	18	8.02
HL-0022	5	17	47.7	24.8	18	5.28
HL-0023	5	17	59.9	34.2	18	14.82
HL-0024	5	17	62.3	25.6	18	6.26
HL-0025	5	17	54.8	38	18	18.12
HL-0026	5	17	54	34.2	18	15.62
HL-0027	5	17	56	26	18	7.32
HL-0028	5	17	45.8	30	18	11
HL-0029	5	17	58.5	44	18	Much23.22
HT-0083	5	17	56	30	18	9
HT-0084	5	17	54	32.5	18	10.5
HT-0085	5	17	62	31	18	9
HT-0086	5	17	62	34	18	12
HT-0087	5	17	54	45	18	22.5
HT-0088	5	17	55	32	18	11
HT-0089	5	17	57	29.5	18	8
HT-0090	5	17	64	32	18	9.5
HT-0091	5	17	48	34	18	11.5
HT-0092	5	17	57	33	18	12.5
HT-0093	5	17	71	28	18	7
HT-0094	5	22.23	78	65.5	18	43
HT-0095	5	15	66	30	18	9.5
HT-0096	5	17	65	30	18	9.5
HT-0097	5	15	53	30	18	9
HT-0098	5	15	62	29.5	18	8.5
HT-3032	5	17	56.2	26	18	7.2
HT-3048	5	17	56	38.2	18	17.93
HT-3055	5	17	56	30.7	18	17.55
HT-3063	5	17	57.5	26.79	18	15.14
HT-5013	5	17	59.7	26.5	18	7.8
HT-5043-B	5	15	54.8	39.54	18	21.6
