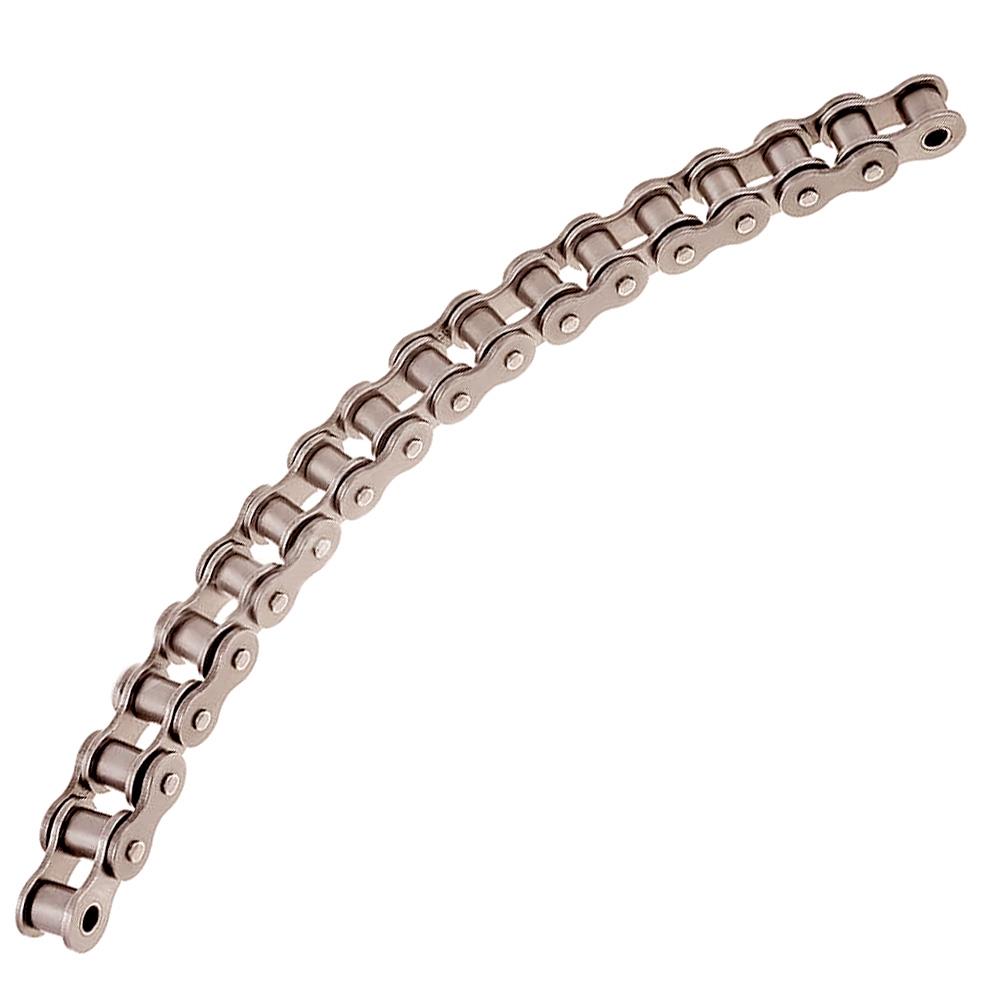

Poly steel roller chain is a specially engineered roller chain that is designed for applications that require a light weight, highly corrosion resistant roller chain that can operate in a broad range of temperatures. For standard poly steel applications you can use the standard poly steel roller chains and for food grade applications use the food grade poly steel roller chain.
Poly-Steel(PC) Chains are lube-free chains used in food or medicine production. PC Chains can be used in power transmission applications, and, with the addition of attachments on the outer plates,as conveyors.
PC Chains are made to exacting specification from carefully selected engineerng plastic inner links(no rollers) and 304 stainless steel outer links, effectively incorporates the advantages of both material into one chain.
|
MAXTOP CHAIN NO. (ANSI) |
Pitch | Width | Roller | Plate | Pin | Maximum |
Approx Weight kg/m |
||||||
| Allowable | |||||||||||||
| P | W | Dia | Height | Thickness | Dia | Lengths | Load | ||||||
| inch | mm | mm | R | H | T1 | T2 | D | F | G | G1 | kgf | ||
| SS25PC | 1/4" | 6.35 | 3.18 | 3.3 | 5.8 | 0.75 | 1.3 | 2.3 | 3.8 | 4.8 | --- | 8 | 0.095 |
| SS35PC | 3/8" | 9.525 | 4.76 | 5.08 | 9 | 1.2 | 2.2 | 3.59 | 5.8 | 7 | 7.6 | 18 | 0.22 |
| SS40PC | 1/2" | 12.7 | 7.94 | 7.92 | 11.8 | 1.5 | 1.5 | 3.96 | 8.2 | 9.35 | 10.1 | 45 | 0.39 |
| SS50PC | 5/8" | 15.875 | 9.53 | 10.16 | 15 | 2 | 2 | 5.06 | 10.,10 | 11.65 | 12.6 | 70 | 0.58 |
| SS60PC | 3/4" | 19.05 | 12.7 | 11.91 | 18.1 | 2.4 | 2.4 | 5.95 | 12.5 | 14.15 | 15.4 | 90 | 0.82 |
