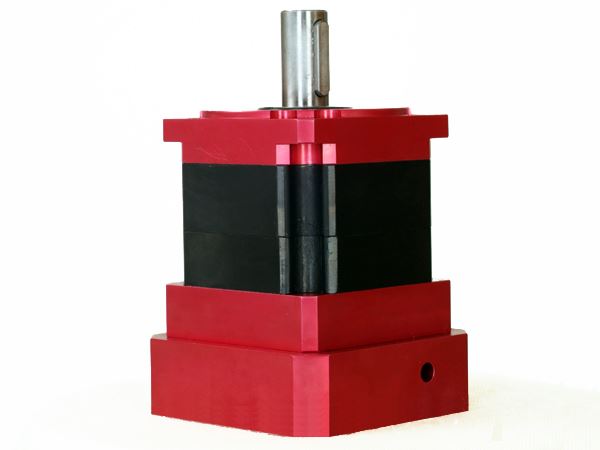

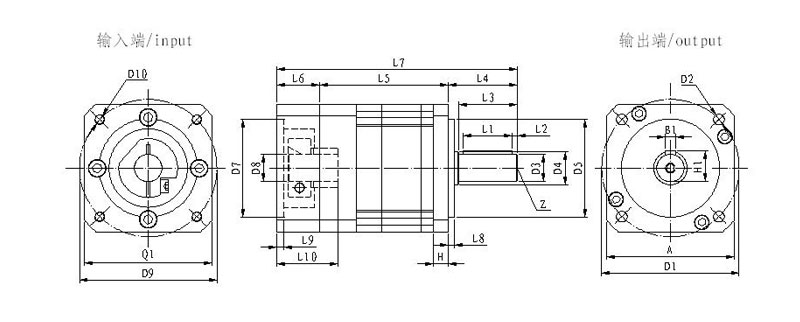

Planetary Gearboxes

The use of planetary gear drives in the field of power.Transmission is the modern answer to the demand for Compactness constructive simplicity and product reliability.

EPX Planetary Gearbox technical data：

Type		EPX40	EPX60	EPX90	EPX115	EPX142	Ratio	Stages
Nominal output torqueT2N	Nm	25	66	158	337	950	3	1
		27.5	71.5	172.5	360	1030	4
		23	53	124	300	850	5
		10	26	67	150	510	8
		- -	- -	- -	150	510	10
		25	66	158	337	950	9	2
		25	66	158	337	950	12
		25	66	158	337	950	15
		27.5	71.5	172.5	360	1030	16
		27.5	71.5	172.5	360	1030	20
		23	53	124	300	850	25
		27.5	71.5	172.5	360	1030	32
		23	53	124	300	850	40
		10	26	67	150	510	64
		25	66	158	337	950	60	3
		27.5	71.5	172.5	360	1030	80
		27.5	71.5	172.5	360	1030	100
		25	66	158	337	950	120
		27.5	71.5	172.5	360	1030	160
		23	53	124	300	850	200
		27.5	71.5	172.5	360	1030	256
		23	53	124	300	850	320
		10	26	67	150	510	512
Emergency stop	Nm	T2Not=2T2N

Type		EPX40	EPX60	EPX90	EPX115	EPX142	Stages
Frmax.for10.000h	N	185	240	440	670	1750
Famax.for10.000h	N	280	400	650	1200	2700
Efficiency with full load	%	96					1
		94					2
		90					3
Average lifetime	h	20000
Weight	Kg	0.45	1	2.4	5.8	15	1
		0.55	1.3	2.9	7.5	19	2
		0.65	1.6	3.5	9.3	23	3

Type		EPX40	EPX60	EPX90	EPX115	EPX142	Stages
Moment of inertia	kgcm2	0.031	0.135	0.77	2.63	12.14	3
		0.022	0.093	0.52	1.79	7.78	4
		0.019	0.078	0.45	1.53	6.07	5
		0.017	0.065	0.39	1.32	4.63	8
		-	-	-	2.62	12.37	10
		0.03	0.131	0.74	2.62	12.15	9
		0.029	0.127	0.72	2.56	12.37	12
		0.023	0.077	0.71	2.53	12.35	15
		0.022	0.088	0.5	1.75	7.47	16
		0.019	0.075	0.44	1.5	6.65	20
		0.019	0.075	0.44	1.49	5.81	25
		0.017	0.064	0.39	1.3	6.36	32
		0.016	0.064	0.39	1.63	5.28	40
		0.016	0.064	0.39	1.3	4.5	64
		0.029	0.076	0.51	2.57	7.5	60
		0.019	0.075	0.5	1.5	7.5	80
		0.019	0.075	0.44	1.49	7.4	100
		0.029	0.064	0.7	2.5	7.3	120
		0.016	0.064	0.39	1.3	6.5	160
		0.016	0.064	0.39	1.3	6.2	200
		0.016	0.064	0.39	1.3	5.7	256
		0.016	0.064	0.39	1.3	5.4	320
		0.016	0.064	0.39	1.3	5.2	512

Banklash		arcmin(分)	EPX40	EPX60	EPX90	EPX115	EPX142	Stages
	precision		<5	<3	<3	<3	<5	1
	criterion		<10	<8	<8	<8	<10	1
	precision		<8	<5	<5	<5	<8	2
	criterion		<12	<10	<10	<10	<12	2
	precision		<10	<8	<8	<8	<10	3
	criterion		<15	<12	<12	<12	<15	3

		EPX40	EPX60	EPX90	EPX115	EPX142
Torsional rigidity	Nm/arcmin	0.7	1.8	4.4	9.2	26.7
Noise	dB(A)	55	58	60	65	70
Max.input speed	min-1	10000	8000	6000	6000	6000
Advised input speed	min-1	4500	4000	4000	3500	3000
