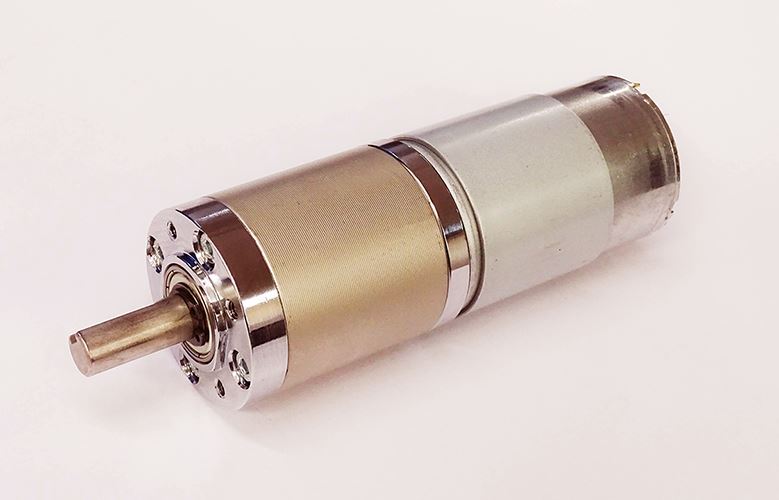

Planetary Dc Motor

Raydafon DC Planetary gearmotors are an inline option for low speed, high torque, and/or variable load requirements. These gear motors are designed for intermittent duty operation because the planetary gearbox configuration provides the highest efficiency and best output torque of all our speed reducers. DC motors combined with planetary gear reducers are ideal for equipment in the agricultural and construction industries. With 18 ratio options ranging from 5:1 to 1000:1, we have a DC planetary gearmotor solution to fit your needs.

For a smaller footprint and quieter gearbox design, look for our I-series Planetary gearmotors. Frame sizes 52cm, 62cm, and 81cm, 12 ratios ranging from 5:1 to 308:1.

62300

FEATURES

1/25 to 3/8 HP

12, 24, 90, 130, 180VDC, 115 FWR

.5 – 475 RPM

3.5 – 950 in-lb rated torque

Frame Size 60, 80, 108 mm

5:1 – 1000:1 standard ratios

Standard brush life of 2000+ hours (varies by application)
