dc motor with encoder

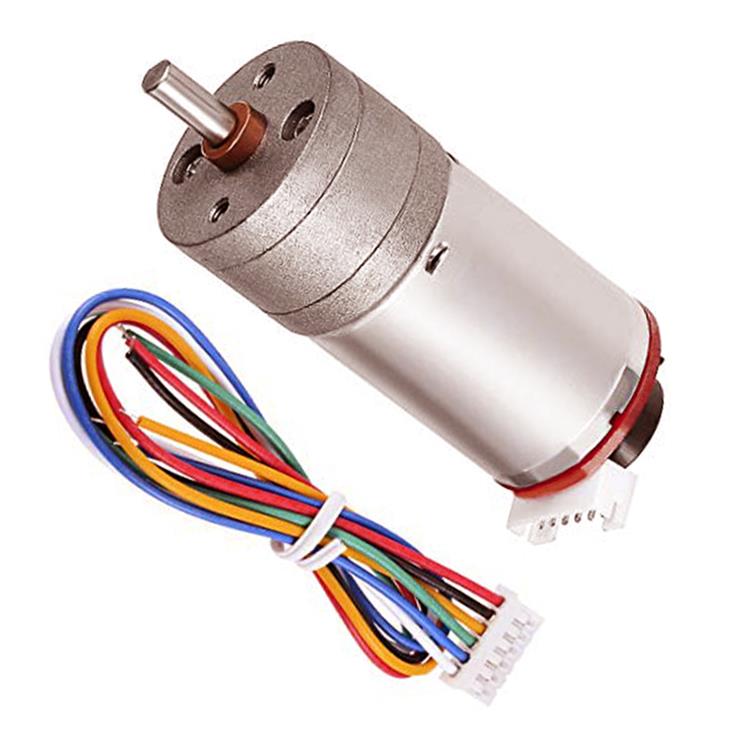

These DC motors are equipped with gear agricultural Chain container and encoder. It uses 2 phase or 2 stations (quadrature) incremental encoders to identify the swiftness of the motor, path of rotation and the length it has travelled.

Encoder feedback data allows you to control your motor acceleration and direction efficiently. DC motors with encoder feed back signal usually called DC servo motors.

DC motors with encoder have got many applications in robots, robot arm, CNC machine and several other applications that want accurate control of acceleration, direction and position. You can control your engine using microcontroller or arduino.

DC Motor Specifications

Voltage: 6:12 VDC
Output Power: 2.2 W
Gear Ratio: 1:75
Rated Speed: 133 RPM
Rated Torque: 25.4 N.cm
Stall Current: 3A
Encoder Type: Hall impact quadrature encoder 5v (monitor position and path of rotation)
Size: 25 x 54 mm
Weight: 120 g
Shaft Diameter: 4mm
