Helical Bevel Gear

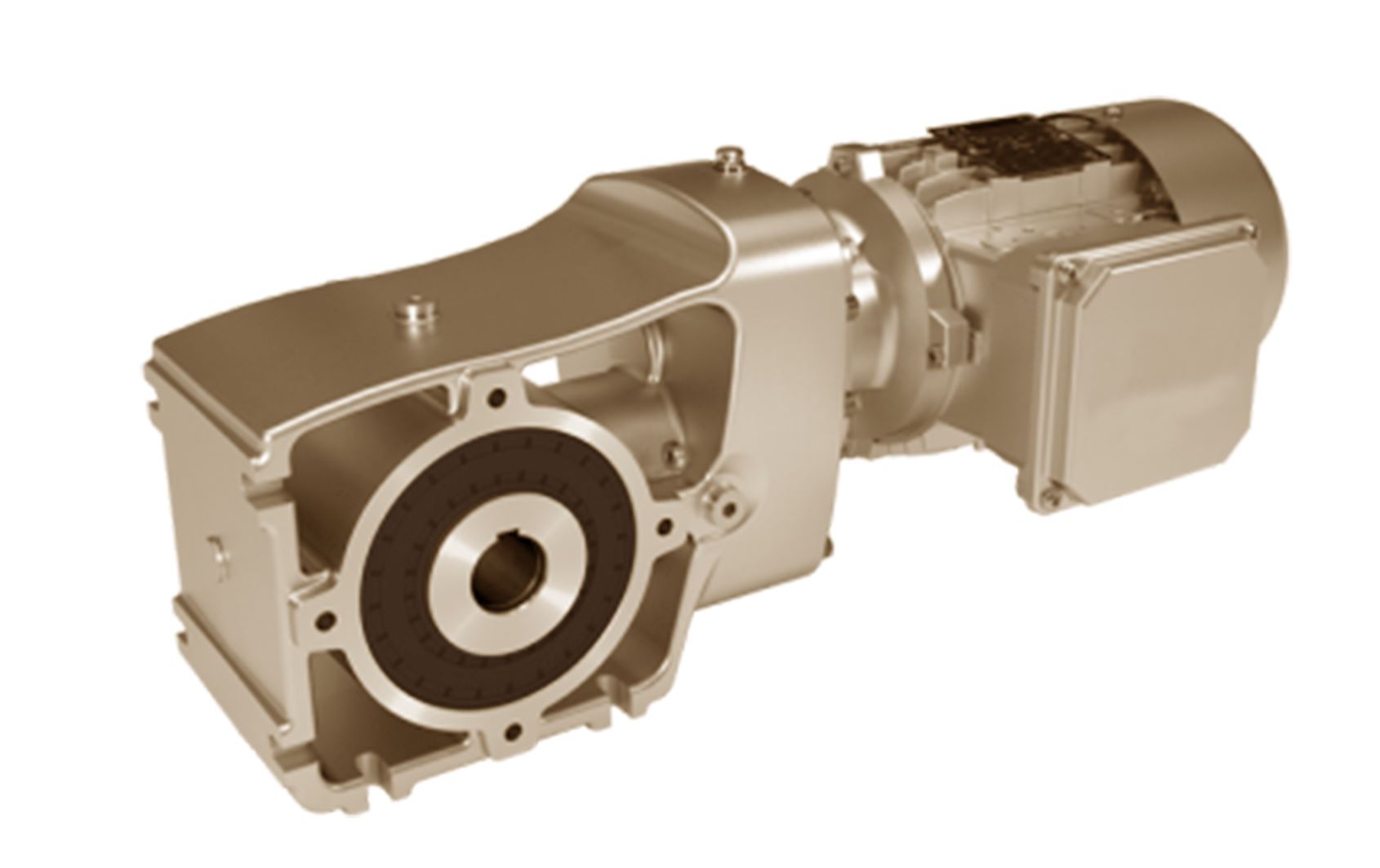

Helical bevel geared motors

Compact, eye-catching, unique for limited space issue!

The compact and structure optimized gear housing of the helical bevel gears distinguish themselves by being machined on all sides and are therefore , ready for a variety of mounting options and applications. The unique motor position provides an almost flat and uncomplicated to mount on ”machine interface”. Various standard shaft executions and the double chamber shaft seals, developed by Raydafon, are ready for use. Shaft and flange dimensions are equal to our helical worm gears.

In the basic executions the gear boxes are designed as 2 stage gears up to the size K. 75 (1. 250Nm). The bigger gear boxes, beginning with the K. 77 (1. 500Nm) are designed as 3 stage gears.

Technical Data
Number of sizes: 11
Power Range: 0. 12 - 90kW
Output torque range: 53 - 20, 000Nm
Ratio: 5. 5 - 8, 900
Output option: output shaft, output shaft on both sides, hollow shaft, hollow shaft with shrink disc, agitaor drive execution
Assembly/mounting: uniblock, flange, torque arm
