Injection Molded Bevel Gears Duracon

Injection Molded Bevel Gears Duracon

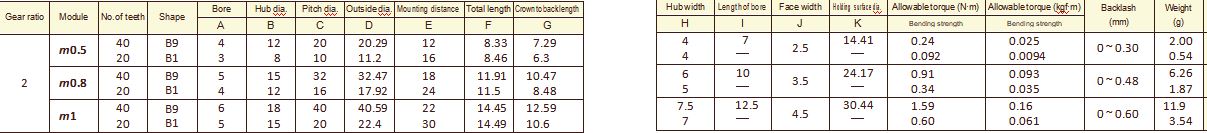

① The allowable torques shown in the table are the calculated values according to the assumed usage conditions.

② The bore tolerance is generally -0.05 to -0.3 but may be + values at the central portion of the hole.

③ To find the dimensional tolerance of these gears, please see the Dimensional Tolerance Table

Specifications

Precision grade JIS B 1704: 1978 grade 6

Gear teeth Gleason

Pressure angle 20°

Material Duracon（M90-44）
