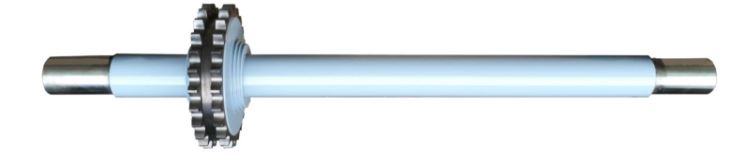

Handrail Drive Shaft And Sprocket Escalator

handrail drive shaft and sprocket

Send Inquiry

Product Description

handrail drive shaft and sprocket

We're professional handrail drive shaft and sprocket escalator manufacturers and suppliers in China, supplying the best wholesale service. Feel free to buy durable handrail drive shaft and sprocket escalator made in China here from our factory.

FAQ：

Q: How long is your delivery time ? What is your terms of payment ?

A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?

A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

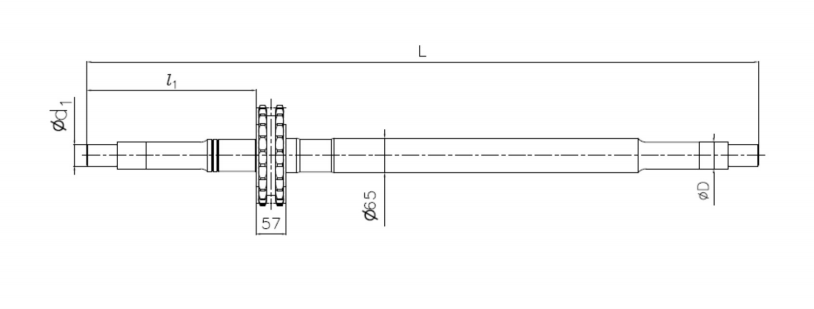

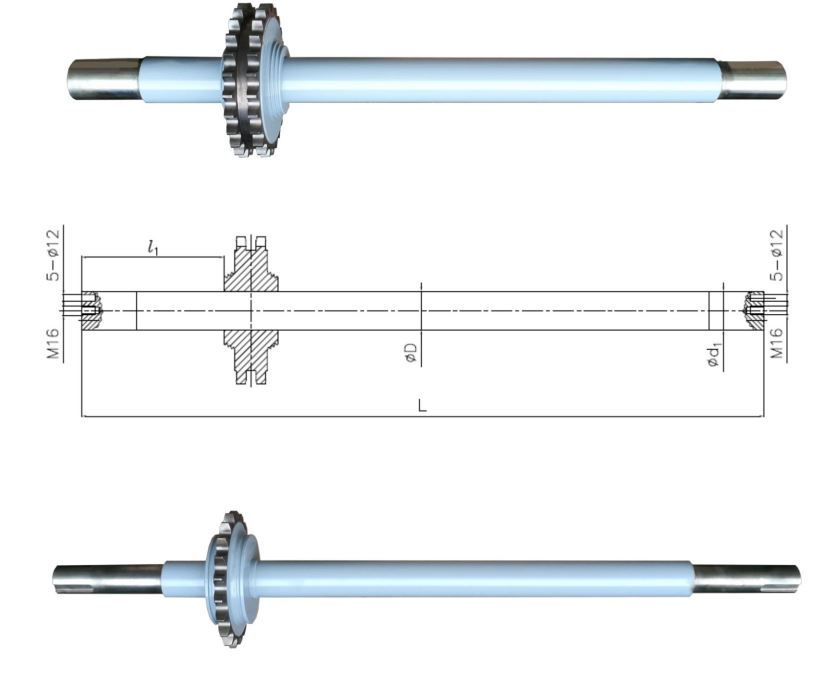

Handrail Drive Shaft And Sprocket Escalator

ID	Cust.	Types of Chain	Number of Teeth	Total Length	Depth	Dia.	Dia.	Key
				Total Length	Depth	Dia.	Dia.	Key
				(L)	-11	0	(0d1)	bx hx l
			(z)	mm
TK -HDS -001	TK	208-1	25	832	249.75	70	70
TK -HDS -002	TK	208-2	25	832	259	70	70
TK -HDS -003	TK	208-1	25	1036	249.75	70	70
TK -HDS -004	TK	208-2	25	1036	259	70	70
TK -HDS 一 005	TK	208-1	25	1240	249.75	70	70
TK -HDS -006	TK	208-2	25	1240	259	70	70
TK -HDS -007	TK	208-2	25	832	259	80	70
TK -HDS -008	TK	208-2	24	832	259	80	70
TK -HDS -009	TK	208-2	25	1036	259	80	70
TK -HDS -010	TK	208-2	24	1036	259	80	70
TK -HDS -011	TK	208-2	25	1240	259	80	70
TK -HDS -012	TK	208-2	24	1240	259	80	70
TK -HDS -013	TK	208-2	24	1325	301.5	80	70
TK -HDS -014	TK	208-2	24	1334	306	80	70
TK -HDS -015	TK	208-2	25	1444	259	100	70
TK -HDS -016	TK	208-2	25	1648	259	100	70
TK -HDS -017	TK	208-2	24	1240	259	100	80
TK -HDS -018	TK	208-2	24	1325	301.5	100	80
TK -HDS -019	TK	208-1	21	1046	264.8	66	50	GB/T 1096 C16 x 10 x 56
TK -HDS -019	TK	208-1	21	1046	264.8	66	50	GB/T 1096 C16 x 10 x 56
TK -HDS -020	TK	208-1	21	1052	267.8	66	50	GB/T 1565 16 ×40
TK -HDS -021	TK	208-1	21	1250	264.8	66	50	GB/T 1096 C16 ×10 x 56
TK -HDS -021	TK	208-1	21	1250	264.8	66	50	GB/T 1096 C16 ×10 x 56
TK -HDS -022	TK	208-1	21	1256	267.8	66	50	GB/T 1565 16 ×40
TK -HDS -023	TK	208-1	21	1343	311.3	66	50	GB/T 1565 16 x 40
