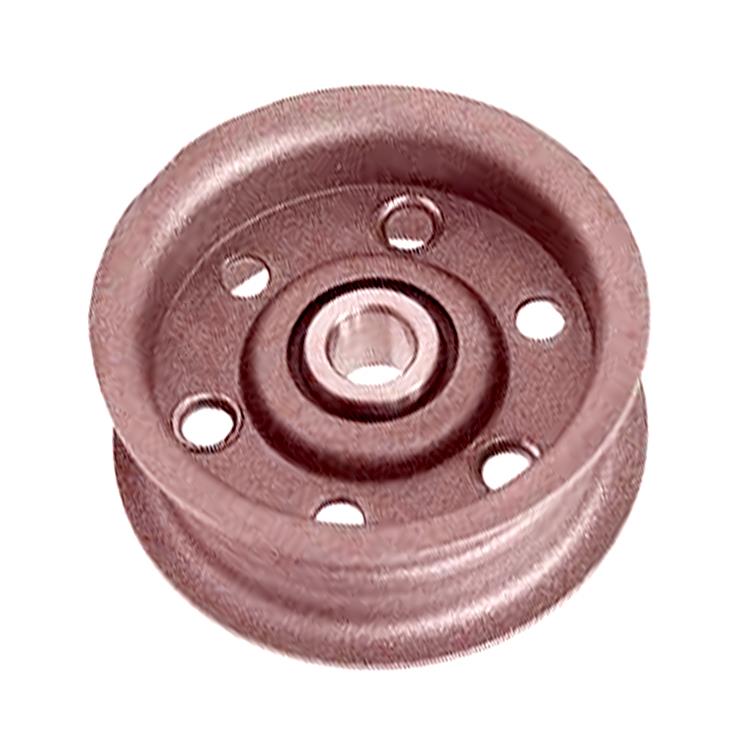

Flat Belt Pulley

The molded crown helps to center the belt and prevent rubbing against the outside flanges. This arrangement provides maximum support where it is needed--under the highly stressed center of the belt! A wide range of widths and diameters is available to suit virtually any flat belt idler requirement and several types of factory-mounted bore adapters are offered.

Send Inquiry

Product Description

Flat Belt Pulley

D1	B	Bush No.	L	H	Speed	Weight
63	50	1108	22	0.3	12000	0.6
80	50	1210	25	0.3	9500	1.2
80	80	1615	38	0.3	9500	1.5
90	50	1615	38	0.3	8500	1.5
	80	1615	38	0.3	8500	1.9
	100	1615	38	0.3	8500	2.2
100	50	1615	38	0.3	7500	1.8
	80	1615	38	0.3	7500	2.4
	100	1615	38	0.3	7500	2.7
125	50	2012	32	0.4	6000	2.6
	80	2517	45	0.4	6000	3.4
	100	2517	45	0.4	6000	3.8
	125	2517	45	0.4	6000	4.5
140	50	2012	32	0.4	5400	3.4
	80	2517	45	0.4	5400	4.5
	100	3020	51	0.4	5400	4.9
	125	3030	76	0.4	5400	5.2
150	50	2012	32	0.4	5000	4.0
	80	2517	45	0.4	5000	5.4
	100	3020	51	0.4	5000	6.2
	125	3030	76	0.4	5000	6.7
	160	3030	76	0.4	5000	7.6
160	50	2012	32	0.5	4750	4.6
	80	2517	45	0.5	4750	6.3
	100	3020	51	0.5	4750	7.5
	125	3030	76	0.5	4750	8.5
	160	3030	76	0.5	4750	10
180	80	2517	45	0.5	4250	7.2
	100	3020	51	0.5	4250	9.8
	125	3030	76	0.5	4250	12.0
	160	3030	76	0.5	4250	14
200	80	2517	45	0.6	3800	8.0
	100	3020	51	0.6	3800	12.0
	125	3030	76	0.6	3800	15.5
	160	3030	76	0.6	3800	18
224	80	2517	45	0.6	3400	8.2
	100	3020	51	0.6	3400	11.5
	125	3030	76	0.6	3400	15.0
	160	3030	76	0.6	3400	17
250	80	2517	45	0.8	3000	8.5
	100	3020	51	0.8	3000	11.0
	125	3030	76	0.8	3000	15.5
	160	3030	76	0.8	3000	17.5
280	100	3020	51	0.8	2700	13.4
	125	3030	76	0.8	2700	17.3
	160	3535	89	0.8	2700	21.8
	200	4040	102	0.8	2700	28.3
315	100	3020	51	0.8	2400	15.8
	125	3030	76	0.8	2400	19.0
	160	3535	89	0.8	2400	26.0
	200	4040	102	0.8	2400	32
355	100	3030	76	0.8	2150	20.0
	125	3030	76	0.8	2150	22.0
	160	3535	89	0.8	2150	27.0
	200	4040	102	0.8	2150	36
400	100	3535	89	1.0	1900	26.0
	125	3535	89	1.0	1900	28.0
	160	3535	89	1.0	1900	32.0
	200	4040	102	1	1900	40
450	160	3535	89	1.0	1700	42.5
450	200	4040	102	1	1700	54.5
500	160	4040	102	1.0	1500	53.0
500	200	4545	115	1	1500	69
560	160	4040	102	1.2	1350	66.5
560	200	4545	115	1.2	1350	86
630	160	4545	115	1.2	1200	80.0
630	200	5050	127	1.2	1200	103

Suitable for use with flat belts, cog belts, poly-V and the back side of conventional V-belts, all Brewer Flat Belt Idler Pulleys feature "crowned" construction. The molded crown helps to center the belt and prevent rubbing against the outside flanges. This arrangement provides maximum support where it is needed--under the highly stressed center of the belt! A wide range of widths and diameters is available to suit virtually any flat belt idler requirement and several types of factory-mounted bore adapters are offered.
