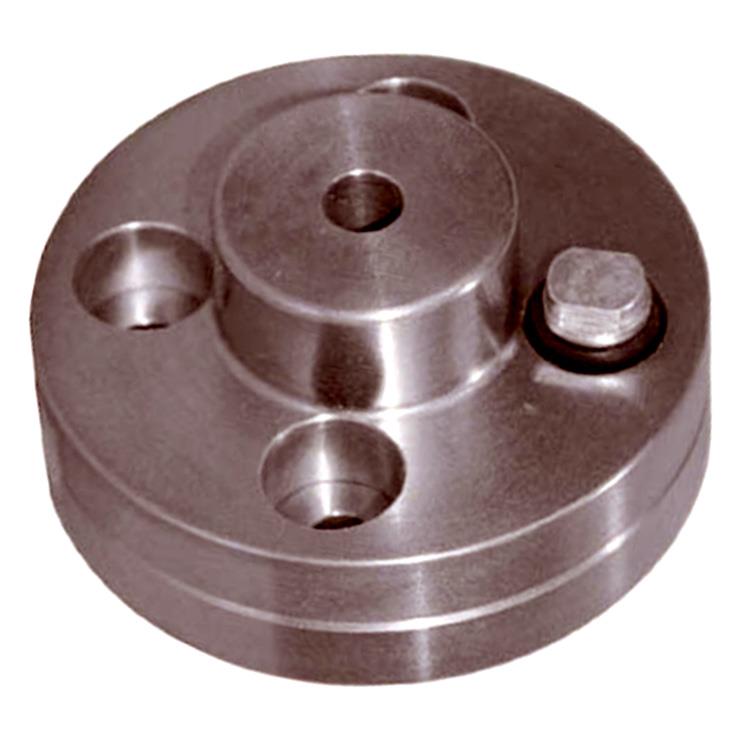

Flange Flexible Coupling

Flange Couplings do not require lubrication and are virtually maintenance free. The simplified form of this piece enables a quick and easy installation. These couplings are easy and low cost to assemble and disassemble.

Send Inquiry

Product Description

SIZE	N.m	r/min	D	D1	d1	L	C	n-M	KG
90	4	4000	90	35.5	11	28	3	4-M8*50	1.7
100	10	4000	100	40	11	35.5	3	4-M10*56	2.3
112	16	4000	112	45	13	40	3	4-M10*56	2.8
125	25	4000	125	50	13	45	3	4-M12*64	4
140	50	4000	140	63	13	50	3	6-M12*64	5.4
160	110	4000	160	80	15	56	3	8-M12*64	8
180	157	3500	180	90	15	63	3	8-M12*64	10.5
200	245	3200	200	100	21	71	4	8-M20*85	16.2
224	392	2850	224	112	21	80	4	8-M20*85	21.3
250	618	2550	250	125	25	90	4	8-M24*100	31.6
280	980	2300	280	140	34	100	4	8-M24*116	44
315	1568	2050	315	160	41	112	4	10-M24*116	57.7
355	2450	1800	355	180	60	125	5	8-M30*150	89.5
400	3920	1600	400	200	60	125	5	10-M30*150	89.5
450	6174	1400	450	224	65	140	5	12-M30*150	145
560	9800	1150	560	250	85	160	5	14-M30*150	229
630	15680	1000	630	280	95	180	5	18-M30*150	296

Flange Couplings transmit power smoothly, and these couplings can absorb shock load and vibration.

The Flange Flexible Couplings can safely operate without any hard covers.
