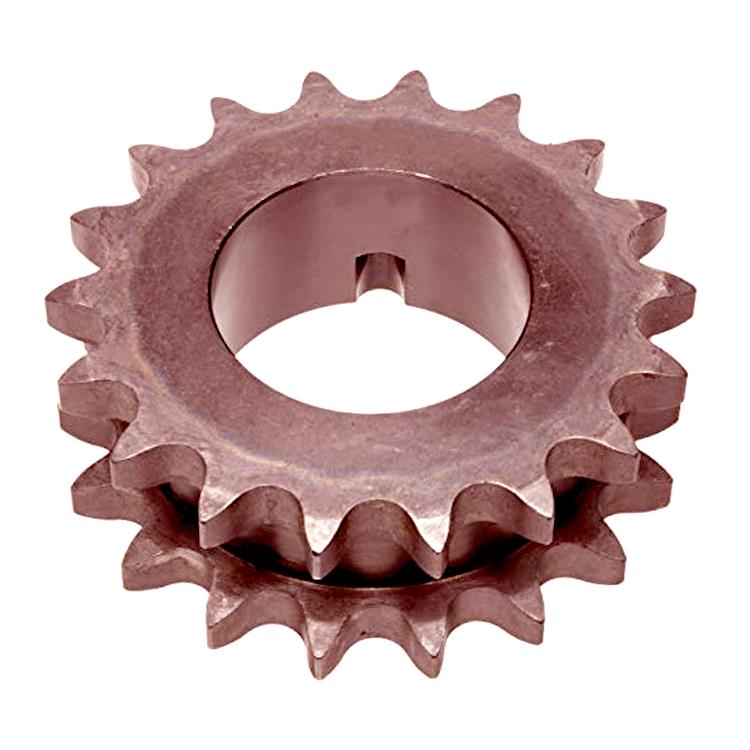

Double Single Sprockets
Double strand steel sprockets for use with 2 single chains. Stocked with mandrel bore.
These sprockets are for use with two single chains – one drive chain and one drive chain – as on Roll Case Drives. They will not operate with two chains connecting both sides of two sprockets or with double strand chain.

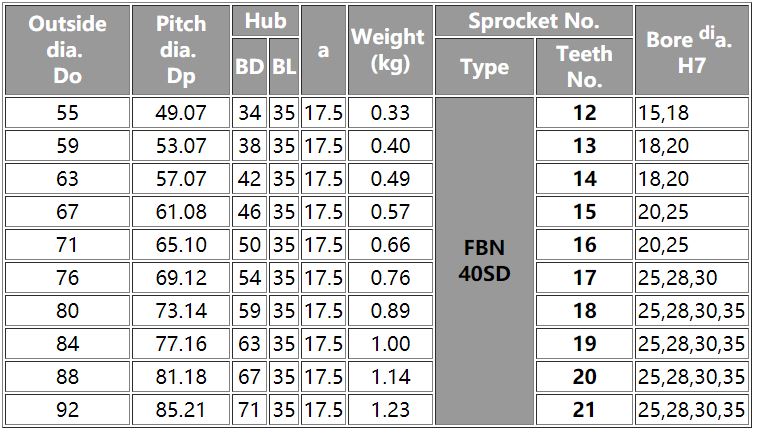

FBN 40SD
| Chain | No.40 | |
| Pitch | (P) | 12.7 mm (1/2inch) |
| Internal width | (W) | 7.95 mm |
| Roller dia. | (Dr) | 7.95 mm |
| Tooth width | (T) | 7.2 mm (C) 27.8 mm |

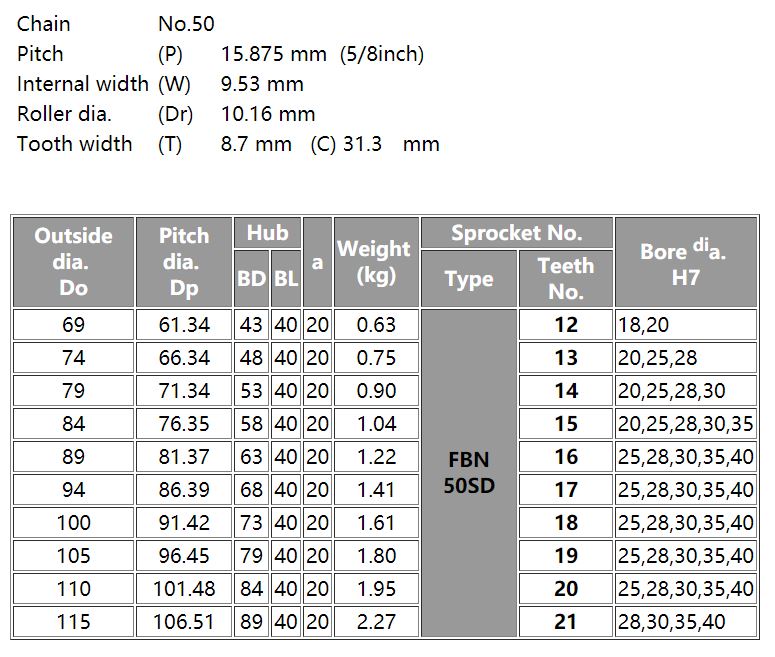

FBN 50SD
FBN 69SD
