Chain Coupling For Greenhouse Window Ventilation Motor Reduction

chain coupling for Greenhouse Window Ventilation Motor Reduction

Send Inquiry

Product Description

chain coupling for Greenhouse Window Ventilation Motor Reduction

Zinc-plated sprocket wheel for mounting on the RLD80/200 gearbox, for using chain couplings.

Art. no.	Description	[m] kg	Chain in	[z]	[M] Nm	Angle °	Shaft mm

416952	SPROCKET 1/2\z16\S\A25	0,47	1⁄2"x5⁄16"	16	240	3°	25

Chain Coupling For Greenhouse Window Ventilation Motor Reduction

Chain coupling 1/2 x5/16 - 12 tooth - B1 - B5/4 for greenhouse

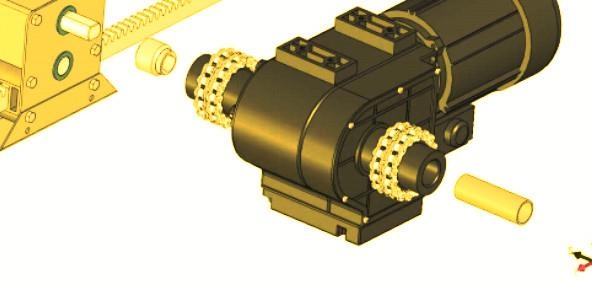

Zinc-plated chain coupling for connecting RW45 and RAL120/90/60 motor gearboxes or RH40 gearboxes to tubular shafts. The chain coupling is suitable for absorbing small centering and alignment errors. The chain coupling set consists of a 12-tooth 1⁄2"x5⁄16" sprocket for the tubular shaft, a duplex chain and a master link. The tubular shaft sprocket must be fixed to the tubular shaft by welding. The RW45 and RAL120/90/60 motor gearboxes are fitted standard with 12-tooth 1⁄2"x5⁄16" sprockets.\

Art. no.	Description	[m] kg	Chain in	[z]	[M] Nm	Angle °	Tube in
Art. no.	Description	[m] kg	Chain in	[z]	[M] Nm	Angle °	Tube in
590000	CH-COUP 1/2\z12\B1	0,41	1⁄2"x5⁄16"	12	120	1°	1"
590003	CH-COUP 1/2\z12\B5/4	0,55	1⁄2"x5⁄16"	12	120	1°	5/4"
590099	CH-COUP 1/2\z12\B2	0,55	1⁄2"x5⁄16"	12	120	1°	2"
416256	SPROCKET 1/2\z12\B1	0,20	1⁄2"x5⁄16"	12	120	0,5°	1"
418062	SPROCKET 1/2\z12\B5/4	0,35	1⁄2"x5⁄16"	12	120	0,5°	5/4"
419751	SPROCKET 1/2\z12\B2\VZ	0,32	1⁄2"x5⁄16"	12	120	0,5°	2"
414246	CHAIN 1/2x5/16\DU\p11	0,20	1⁄2"x5⁄16"
281010	CHAIN CONNECTOR 1/2x5/16\DU	0,02	1⁄2"x5⁄16"

Chain Coupling For Greenhouse Window Ventilation Motor Reduction

Zinc-plated bolted chain coupling for connecting RW45 and RAL120/90/60 motor gearboxes or RH40 gearboxes with tubular shafts. The bolted chain coupling is suitable for absorbing small centering and alignment errors. The bolted chain coupling set consists of a 12-tooth 1⁄2"x5⁄16" bolted sprocket for the tubular shaft, a duplex chain and a master link. The bolted sprocket for tubular shafts is mounted on the tubular shaft by a bolt and nut. The RW45 and RAL120/90/60 motor gearboxes are fitted standard with 12-tooth 1⁄2"x5⁄16" sprockets.

Art. no.	Description	[m] kg	Chain in	[z]	[M] Nm	Angle °	Tube in
Art. no.	Description	[m] kg	Chain in	[z]	[M] Nm	Angle °	Tube in
590001	CH-COUP 1/2\z12\B1\BOLT	0,85	1⁄2"x5⁄16"	12	120	1°	1"
590002	CH-COUP 1/2\z12\B5/4\BOLT	0,89	1⁄2"x5⁄16"	12	120	1°	5/4"
417410	SPROCKET 1/2\z12\B1\BOLT	0,45	1⁄2"x5⁄16"	12	120	0,5°	1"
417461	SPROCKET 1/2\z12\B5/4\BOLT	0,50	1⁄2"x5⁄16"	12	120	0,5°	5/4"
414246	CHAIN 1/2x5/16\DU\p11	0,20	1⁄2"x5⁄16"
281010	CHAIN CONNECTOR 1/2x5/16\DU	0,02	1⁄2"x5⁄16"
