cardan joint
In Double Cardan joints length of the intermediate shaft is shortened leaving only the yokes. This configuration allows the two Hooke's joints to be mounted back to back. Double cardan joint are used to correctly phase the universal joints at the ends of the intermediate shaft.
drive shaft is smoother operation at higher operating angles and longer life. The C.V. assembly works by intersecting the joint angles at the center pivot point and delivering a smooth rotational power flow or surface velocity through the drive line.
U-Joints for DAF

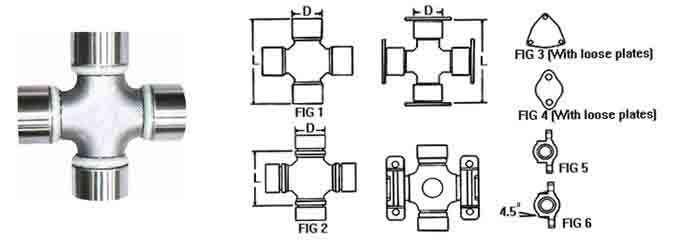

| Our No. | Fig | D | O | L | Original No. | GMB | |
| EP179 | 1 | 30.188 | 106.35 | 608921 | GU2050 | ||
| EP222 | 1 | 35 | 96.8 | 542635 | GU7430 | ||
| EP236 | 1 | 38 | 105.8 | 314851 | 314151 | GU7440 | |
| EP176 | 1 | 39.675 | 115.42 | 316340 | GU3550 | ||
| 6090057 | 1 | 42 | 104.5 | 609057 | |||
| EP256 | 1 | 44 | 124.8 | 140264 | 302155 | ||
| EP266 | 1 | 47 | 130.9 | 106829 | 586969 | ||
| EP271 | 1 | 48 | 116.4 | 609866 | 507539 | GU9730 | |
| EP278 | 1 | 50 | 131 | 178185 | GU8110 | ||
| EP381 | 3 | 50 | 152.6 | 605804 | 311267 | GU3810 | |
| EP282 | 1 | 52.1 | 133 | 264354 | GU7560 | ||
| EP286 | 1 | 55 | 164 | 586992 | |||
| EP288 | 1 | 57.07 | 144 | 75873606 | 508698 | GU8130 |
U-Joints for BENZ
| Our No. | Fig | D | O | L | Original No. | GMB | |
| EP446 | 2 | 28 | 49 | 1004100131 | 1123500028 | ||
| 1114100031 | 1804100331 | ||||||
| EP222 | 1 | 35 | 96.8 | 304100431 | 304104831 | GU7430 | |
| EP480 | 2 | 38 | 57 | 3024100031 | 3124111331 | GU7300 | |
| 3104100031 | 3224110031 | ||||||
| 3124111231 | 3224110131 | ||||||
| 3854100231 | |||||||
| EP236 | 1 | 38 | 105.6 | 304102031 | GU7440 | ||
| EP486 | 2 | 42 | 66.4 | 3174100131 | 3374110031 | ||
| 3374010031 | 3544100131 | ||||||
| 3374100031 | 3854100131 | ||||||
| 3374105031 | |||||||
| EP259 | 1 | 45 | 118.1 | 304102231 | |||
| EP260 | 1 | 45 | 120.4 | 4100031 | 3044100031 | GU7530 | |
| 3174100031 | |||||||
| EP272 | 1 | 48 | 125.8 | 3604100232 | 3614100231 | GU7620 | |
| 3604100231 | 3854100531 | ||||||
| 381400031 | 3854100731 | ||||||
| 3814100231 | 3874100131 | ||||||
| 3854100031 | |||||||
| EP282 | 1 | 52 | 133 | 3354100031 | GU7560 | ||
| EP284 | 1 | 53 | 135 | 3634100631 | 3634100031 | GU7610 | |
| 6204100131 | |||||||
| EP289 | 1 | 57 | 152 | 3874100031 | 7.18642E+11 | GU7630 | |
| 6204100031 |
