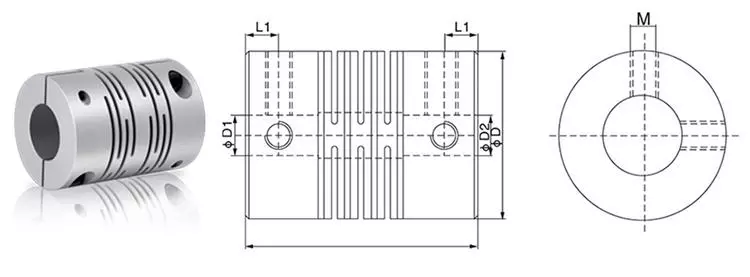

Beam Shaft Coupling;
Diamenter of the shaft hole:3-16 mm;
Nominal torsion:0.75-4.5 N.m
| Beam Coupling Type | BORE DIA. | OUTSIDE DIA. | TOTAL LEGNTH | M | Nominal Torque | Max Speed |
| (mm) | (mm) | (mm) | (N.M) | (RPM) | ||
| EP1-16X17.5 | 3~6 | 16 | 17.5 | M2.5 | 0.75 | 8000 |
| EP1-19X20 | 3~8 | 19 | 20 | M2.5 | 1.5 | 8000 |
| EP1-24X25 | 4~11 | 24 | 25 | M3 | 2.2 | 6200 |
| EP1-29X30 | 5~12.7 | 29 | 30 | M3 | 3 | 5000 |
| EP1-34X35 | 8~16 | 34 | 35 | M3 | 4.5 | 4300 |
