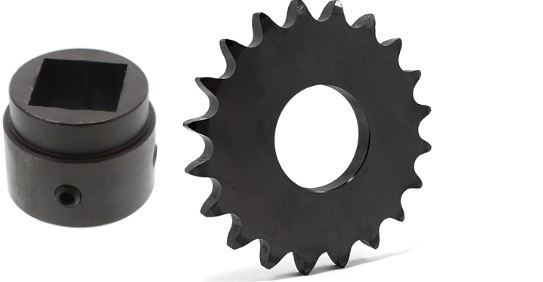

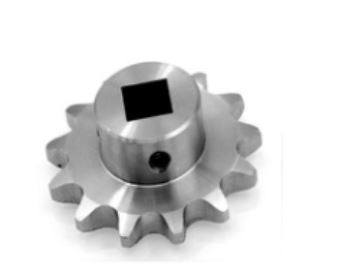

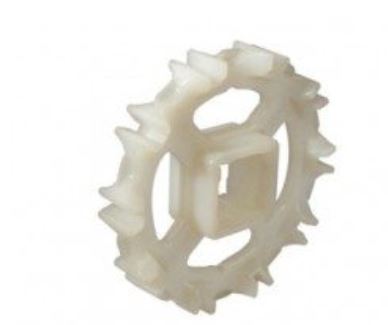

Square Bore Sprockets

Finished-Bore Sprockets are provided with standard keyway and 2 set screws. The keyway is for fixing your sprocket to the shaft to keep the sprocket from spinning. One set screw is located over the key and one is located 90 degrees to the key for locking onto the shaft.

Send Inquiry

Product Description

# OF TEETH	SPROCKET	OUTSIDE DIAMETER
550 CHAIN
6	5506	3.98
7	5507	4.48
8	5508	4.98
9	5509	5.49
10	55010	6
11	55011	6.51
12	55012	7.02
13	55013	7.53
14	55014	8.05
15	55015	8.56
16	55016	9.08
17	55017	9.59
18	55018	10.11
19	55019	10.62
20	55020	11.14
555 CHAIN
6	5556	3.94
7	5557	4.43
8	5558	4.94
9	5559	5.44
10	55510	5.95
11	55511	6.46
12	55512	6.97
13	55513	7.49
14	55514	8
15	55515	8.52
16	55516	9.03
17	55517	9.55
18	55518	10.06
19	55519	10.58
20	55520	11.1
557 CHAIN
6	5576	3.98
7	5577	4.48
8	5578	4.98
9	5579	5.49
10	55710	6
11	55711	6.51
12	55712	7.02
13	55713	7.53
14	55714	8.05
15	55715	8.56
16	55716	9.08
17	55717	9.59
18	55718	10.11
19	55719	10.62
20	55720	11.14
620 CHAIN
6	6206	4.02
7	6207	4.53
8	6208	5.04
9	6209	5.55
10	62010	6.07
11	62011	6.59
12	62012	7.11
13	62013	7.63
14	62014	8.15
15	62015	8.67
16	62016	9.19
17	62017	9.72
18	62018	10.24
19	62019	10.76
20	62020	11.29
