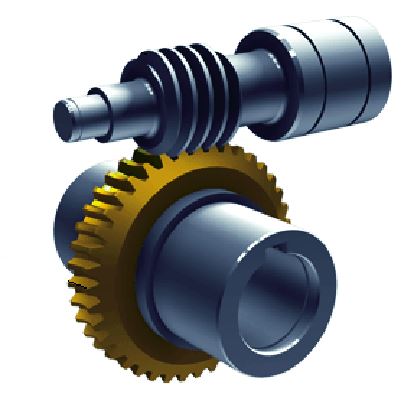

Raydafon, Module 6, Single Start, Ground Worm Shafts Specifications Gear Type Worm Gears Construction Ground Worm Shafts Nominal Axial Module 6 Number of Start 1 Nominal Lead Angle 5°43' Hand of Thread Right Hand Shape W6 Shaft Diameter / Bore (A) 60.2 (mm) Shaft Length Left (F') 60.0...
We're professional single start worm gear manufacturers and suppliers in China, supplying the best wholesale service. Feel free to buy durable single start worm gear made in China here from our factory.
| Gear Type | Worm Gears | Construction | Ground Worm Shafts |
| Nominal Axial Module | 6 | Number of Start | 1 |
| Nominal Lead Angle | 5°43' | Hand of Thread | Right Hand |
| Shape | W6 | Shaft Diameter / Bore (A) | 60.2 (mm) |
| Shaft Length Left (F') | 60.0 (mm) | Pitch Diameter (P) | 60.0 (mm) |
| Outer Diameter (Q) | 72.0 (mm) | Face Width (M) | 100.00 (mm) |
| Shaft Length Right (F) | 160.0 (mm) | Neck Length Left | 40 (mm) |
| Neck Length Right | 40 (mm) | Neck Diameter | 44.0 (mm) |
| Total Length (J) | 400.00 (mm) | Weight | 8.09000 (kg) |
| Precision Grade | KHK W 001 grade 2 | Reference Section of Gear | Axial |
| Gear Teeth Type | Standard Full Depth | Pressure Angle | 20° |
| Material | SCM440 (AISI 4140) Alloy Steel | Heat Treatment | Thermal Refined, tooth surface Induction Hardened |
| Tooth Hardness | HRC 50-60 | Surface Treatment | Black oxide coated except for ground part |
