Scroll Air Compressor

Although the idea for a scroll compressor has been around for over 100 years, the technology is actually pretty recent as 40 years ago. As the industry continues to advance, so is the need for reliable, clean and oil-free compressed air.

Send Inquiry

Product Description

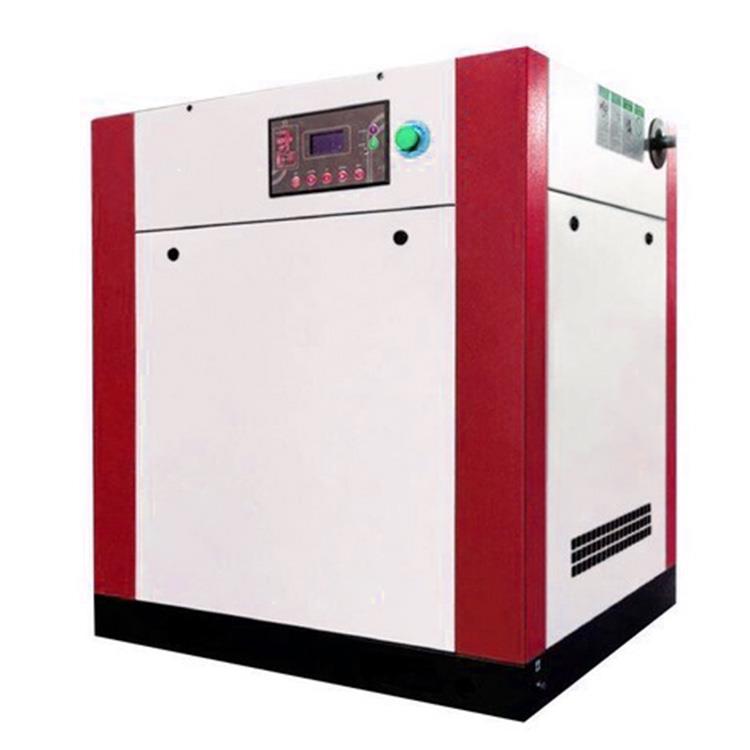

Scroll air compressor

lthough the idea for a scroll compressor has been around for over 100 years, the technology is actually pretty recent as 40 years ago. As the industry continues to advance, so is the need for reliable, clean and oil-free compressed air. Scroll compressors are ideal in commercial applications that include: medical, pharmaceutical, food, laboratory, textile, electronics, and production facilities.

Anywhere quiet, clean air is required, a heavy-duty scroll compressor is the only way to go. They come in a wide variety of sizes, up to 30 HP, which can produce as much as 86 CFM! Scroll compressors utilize a very innovative (spiral) design that compresses air quietly with fewer moving parts and less required maintenance.

Scroll air compressors use two spiral-shaped scroll pieces to compress air. One scroll is stationary, meaning it's fixed in place and doesn't move, and the other fits inside the stationary scroll and is moved in a tight circular motion without rotating. The moving scroll presses against the inside of the stationary scroll in such a way that, as it moves in a circular motion, it pushes and traps air into small pockets between the two.

Scroll Air Compressor

Model	Motor power		Working pressure	FAD	Noise	Connection	N.W.	Dimension
	Motor power		Working pressure	FAD	Noise	Connection	N.W.	LWH
	KW	HP	Mpa	L/min	dB(A)	inch	kg	mm
CMW2.2-0.8	2.2	3	0.2-0.8	255	49±3	1/2″	132	670630945
CMW3.7-0.8	3.7	5	0.2-0.8	415	52±3	1/2″	150	7206801050
CMW4.4-0.8	2.2*2	6	0.2-0.8	510	52±3	1/2″	150	8006501020
CMW7.4-0.8	3.7*2	10	0.2-0.8	830	55±3	1″	185	8807201120
CMW11-0.8	3.7*3	15	0.2-0.8	1245	58±3	1″	300	14509001150
CMW15-0.8	3.7*4	20	0.2-0.8	1660	61±3	1″	350	14509001150

CMW2.2-1.0	2.2	3	0.2-1.0	215	49±3	1/2″	132	670630945
CMW4.5-1.0	4.5	6	0.2-1.0	410	52±3	1/2″	150	7206801050
CMW4.4-1.0	2.2*2	6	0.2-1.0	430	52±3	1/2″	150	8006501020
CMW9-1.0	4.5*2	12	0.2-1.0	820	58±3	1″	185	8807201120
CMW13.5-1.0	4.5*3	18	0.2-1.0	1230	61±3	1″	300	14509001150
CMW18-1.0	4.5*4	25	0.2-1.0	1640	61±3	1″	350	14509001150

CMW3.0-1.2	3	5	0.2-1.2	210	49±3	1/2″	135	670630945
CMW4.2-1.2	4.5	6	0.2-1.2	360	52±3	1/2″	150	7206801050
CMW6.0-1.2	3*2	8	0.2-1.2	420	52±3	1/2″	150	8006501020
CMW9-1.2	4.5*2	12	0.2-1.2	720	58±3	1″	185	8807201120
CMW13.5-1.2	4.5*3	18	0.2-1.2	1080	61±3	1″	300	14509001150
CMW18-1.2	4.5*4	25	0.2-1.2	1440	61±3	1″	350	14509001150
