- Heat treatment of all chain components for maximum strength
And wear resistance is higher.
- All roller chains are preloaded during the manufacturing process,
Minimize initial elongation.
- Hot dip lubrication ensures all chains
Parts are 100% lubricated, extending wear life and reducing maintenance costs.
|

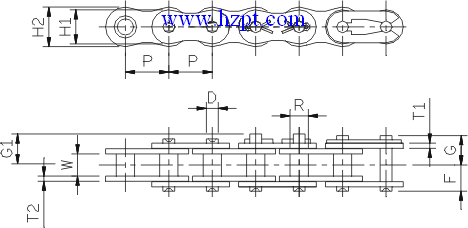

MAXTOP CHAIN NO. (ANSI) |
Pitch | Width | Bush | Plate | Pin |
Average Ultimate Strength kgf |
Approx Weight kg/m | |||||||
| P | W | Dia | Height | Thickness | Dia | Lengths | ||||||||
| inch | mm | mm | R | H1 | H2 | T1 | T2 | D | F | G | G1 | |||
| 16438 | 1/2" | 12.7 | 7.94 | 5.6 | 10.2 | 11.8 | 1.5 | 1.5 | 3.96 | 8.2 | 9.35 | 10.1 | 1850 | 0.53 |
| 20090 | 5/8" | 15.875 | 9.53 | 7 | 13 | 14.8 | 2 | 2 | 5.06 | 10.1 | 11.65 | 12.6 | 3100 | 0.83 |
| 23743 | 3/4" | 19.05 | 12.7 | 8.1 | 15.5 | 17.5 | 2.4 | 2.4 | 5.95 | 12.5 | 14.15 | 15.4 | 4400 | 1.2 |
| 31048 | 1" | 25.4 | 15.88 | 11.3 | 20.4 | 24 | 3.1 | 3.1 | 7.94 | 16.1 | --- | 18.8 | 7800 | 2.2 |
| 105-1 | 1-1/4" | 31.75 | 19.05 | 13.45 | 24.8 | 30.1 | 3.9 | 3.9 | 9.52 | 20.1 | --- | 23.1 | 11800 | 3.3 |
| 125-1 | 1-1/2" | 38.1 | 25.4 | 15.85 | 30 | 35 | 4.7 | 4.7 | 11.1 | 25.2 | --- | 28.6 | 15500 | 4.82 |
| 145-1 | 1-3/4" | 44.45 | 25.4 | 18 | 36.2 | 42 | 5.6 | 5.6 | 12.7 | 27.3 | --- | 31.5 | 21500 | 7.35 |
| 165-1 | 2" | 50.8 | 31.75 | 20.15 | 41.4 | 48 | 6.4 | 6.4 | 14.28 | 32.55 | --- | 37.25 | 27500 | 9.42 |
