Pawls For Ratchets Wheel

Pawls for Ratchets wheel

Ratchets and pawls are mechanical assemblies that are used to transmit intermittent rotary motion, or to permit a shaft to rotate in one direction but not the other.

Ratchets and pawls are usually made of:steel,stainless steel,cast iron,brass other metal materials.

Features

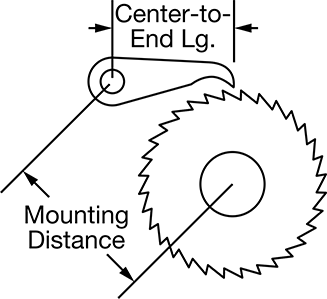

Ratchets are sometimes called ratchet wheels because they consist of a rotating gear or rack with angled teeth. Pawls, which are sometimes misidentified as ratchets, are thin protrusions that rest against a ratchet to restrict its motion. When the ratchet is rotated in one direction, the pawl is raised and moves smoothly between the angled teeth. When the ratchet’s rotation stops, the pawl rests between the teeth and makes a clicking noise. Ratchets and pawls that permit rotation in only one direction cause the pawl and teeth to clash if the ratchet is turned the opposite way.

Applications

Applications for these single-direction devices include:turnstiles,spanners,winders,jacks

The action of a ratchet can be either harsh or smooth, depending on the configuration of the ratchet teeth and pawl.

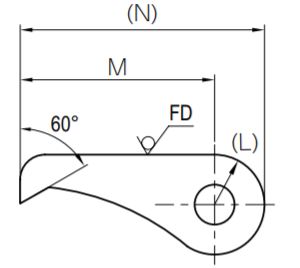

Metal Pawls for Ratchets wheel

Plastic Pawls for Ratchets wheel
