We're professional outer yoke with push-pin1 manufacturers and suppliers in China, supplying the best wholesale service. Feel free to buy durable outer yoke with push-pin1 made in China here from our factory.

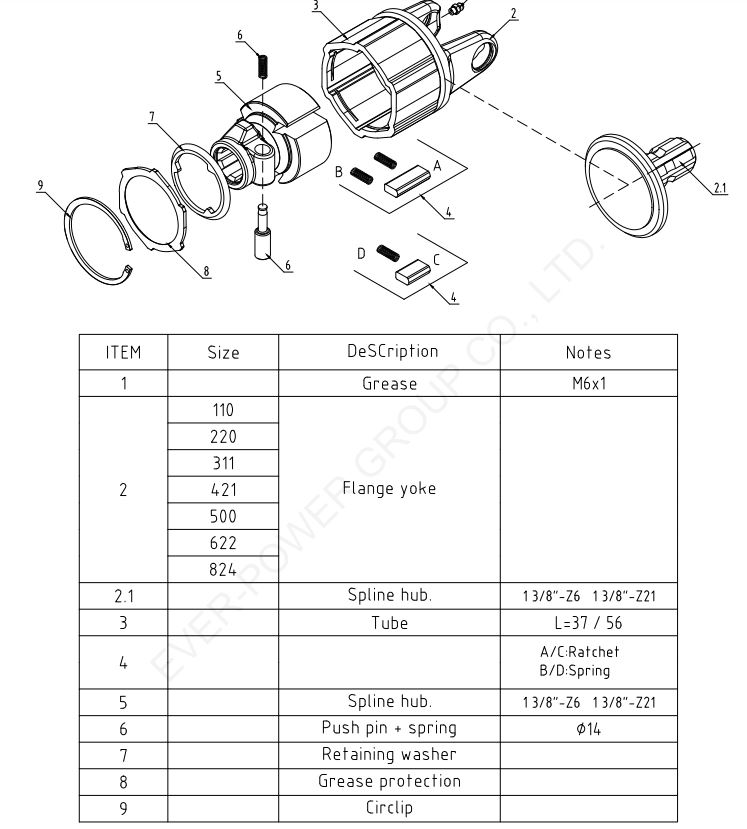

The device is used to transmit the motion in a single rotation direction, when thetractor drives the implement. During the stopping phase, with the tractor PTO

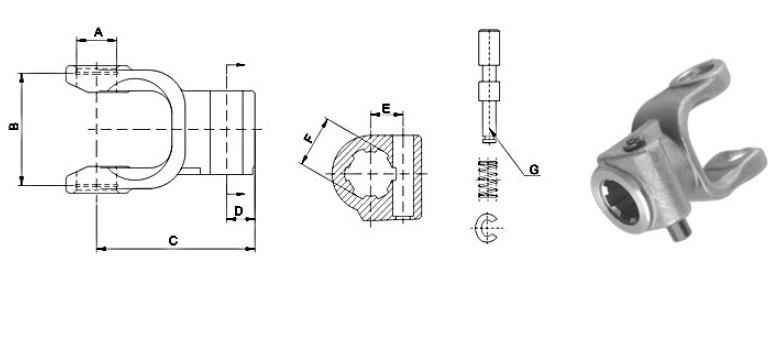

| CODE | A (mm.) | B (mm.) | C (mm.) | D (mm.) | E (mm.) | F (mm.) | |
| 1 | 35 | 22 | 54 | 90 | 20 | 22 | 1”3/8Z6 |
| 1”3/8Z6 | |||||||
| 2 | 35 | 238 | 613 | 99 | 19 | 1”3/8Z6 | |
| 1”3/8Z21 | |||||||
| 3 | 35 | 27 | 70 | 102 | 1”3/8Z6 | ||
| 36 | 1”3/8Z21 | ||||||
| 4 | 35 | 27 | 746 | 107 | 1”3/8Z6 | ||
| 36 | 1”3/8Z21 | ||||||
| 5 | 35 | 302 | 80 | 109 | 1”3/8Z6 | ||
| 36 | 1”3/8Z21 | ||||||
| 6 | 35 | 302 | 92 | 116 | 1”3/8Z6 | ||
| 36 | 1”3/8Z21 | ||||||
| 7 | 35 | 302 | 1065 | 121 | 1”3/8Z6 | ||
| 36 | 1”3/8Z21 | ||||||
| 8 | 35 | 35 | 1065 | 124 | 1”3/8Z6 | ||
| 36 | 1”3/8Z21 | ||||||
| 8 | 37 | 35 | 1065 | 132 | 1”3/4Z6 | ||
| 38 | 1”3/4Z20 |
