Product Description

A fluid coupling or hydraulic coupling is a hydrodynamic or 'hydrokinetic' device used to transmit rotating mechanical power.[1]

It has been used in automobiletransmissions as an alternative to a mechanical clutch. It also has widespread application in marine and industrial machine drives, where variable speed operation and controlled start-up without shock loading of the power transmission system is essential.

Fluid Couplings YOXm

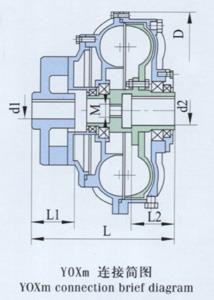

select table of YOXm type fluid couplings specification and size

Item no.	D	L（min）	d1（max）	L1	d2（max）	L2	M（拆卸螺孔）	M
YOXm-190	235	180	30	60	25	60	16	MT4
YOXm-200	240	180	30	60	30	70	16	MT4
YOXm-220	260	200	36	70	35	70	16	MT5
YOXm-250	300	210	36	70	40	80	16	MT6
YOXm-280	328	240	40	80	45	100	20	MT7
YOXm-320	380	276	48	110	50	110	30?/font>1.5	MT7
YOXm-340	392	282	48	110	42	110	30?/font>1.5	MT8
YOXm-360	422	287	55	110	55	110	30?/font>1.5	MT8
YOXm-400	465	352	60	140	60	130	36?/font>2	MT10
YOXm-420	480	345	65	140	60	140	36?/font>2	MT10
YOXm-450	522	384	75	140	70	140	42?/font>2	MT10
YOXm-500	572	426	80	170	90	170	42?/font>2	MT11
YOXm-560	642	487	100	210	100	175	42?/font>2	MT11
YOXm-600	695	540	100	210	100	180	48?/font>2	MT12
YOXm-650	755	522	130	210	120	210	48?/font>2	MT12
YOXm-710	815	580	130	210	130	210	48?/font>2	MT12
YOXm-750	850	603	140	250	140	250	56?/font>2	MT12
YOXm-1000	1130	735	150	250	150	250	56?/font>2
