Product Description

Fluid coupling

A fluid coupling is used to transmit rotating mechanical power, providing variable speed and controlled soft start-up in machine drives, avoiding shock loading. This makes fluid couplings an ideal alternative to mechanical clutches, as well as for applications such as conveyors and industrial machine drives.

Fluid Coupling

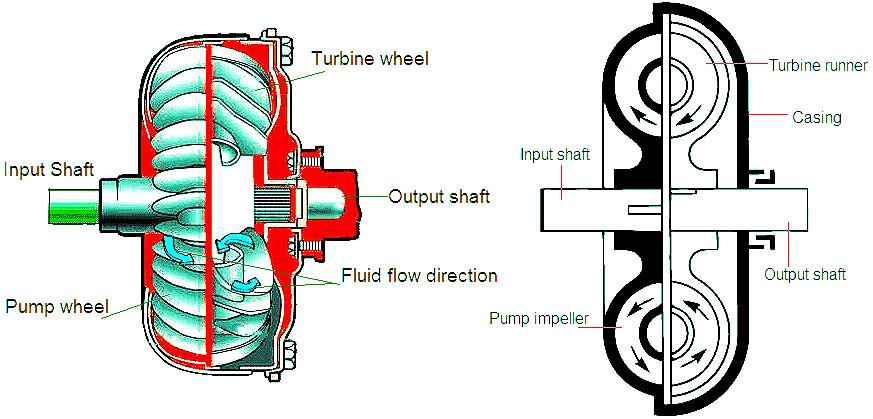

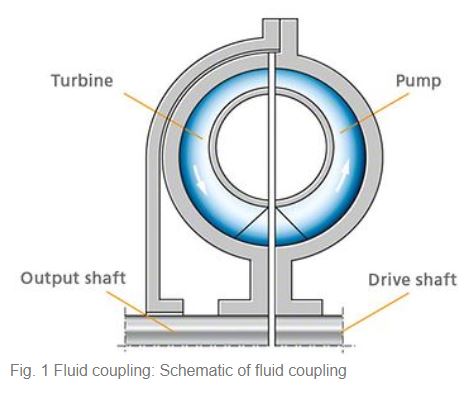

A fluid coupling or hydraulic coupling is a hydrodynamic or 'hydrokinetic' device used to transmit rotating mechanical power.[1] It has been used in automobiletransmissions as an alternative to a mechanical clutch. It also has widespread application in marine and industrial machine drives, where variable speed operation and controlled start-up without shock loading of the power transmission system is essential.

Hydrokinetic drives, such as this, should be distinguished from hydrostatic drives, such as hydraulic pump and motor combinations.

Fluid Coupling

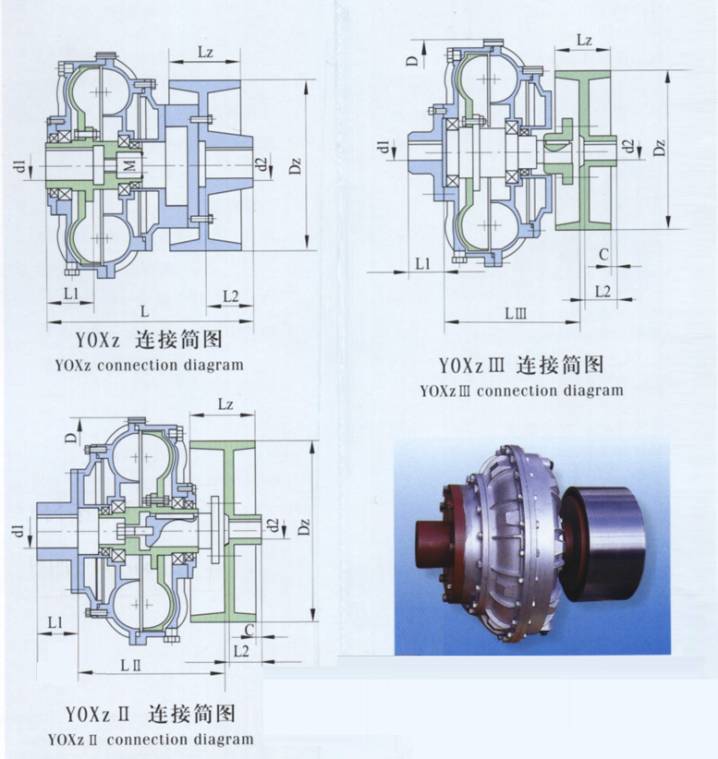

Select table of YOXz YOXzⅡ YOXzⅢ fluid couplings size and specification

Item	D	Dz/Lz	C	d1	L1	d2	L2	L	LⅡ	LⅢ	M
YOX-280	328	200/85	10	35	80	45	90	300	245	230	20
YOX-320	380	200/85	10	40	110	50	110	310	245	280	30?.5
YOX-360	422	250/105	10	55	110	55	110	360	260	300	30?.5
YOX-400	465	315/135	10	60	140	65	140	450	260	350	36?
YOX-450	522	315/135	10	70	140	70	140	505	280	390	42?
YOX-500	572	400/170	10	85	170	90	170	575	302	410	42?
YOX-560	642	400/170	10	100	170	110	170	600	366	440	42?
YOX-600	695	500/210	15	100	170	130	180	670	380	470	48?
YOX-650	745	500/210	15	120	210	130	250	725	390	440	48?
YOX-710	815	630/265	15	120	210	130	250	760	460	560	48?
YOX-750	850	630/265	20	140	250	150	250	800	520	580	56?

Fluid Coupling

select table of YOXp type fluid couplings size and specification

规格	D	L	d1（max）	L1	Dp（min）	M
YOXp-190	235	102	25	60	78	16
YOXp-200	240	112	25	70	80	16
YOXp-220	260	175	30	80	80	16
YOXp-250	300	155	38	80	110	16
YOXp-280	328	160	38	100	120	20
YOXp-320	380	170	48	110	130	30?/font>1.5
YOXp-360	422	190	55	120	150	30?/font>1.5
YOXp-400	465	225	65	130	150	36?
YOXp-450	522	240	70	140	200	42?
YOXp-500	572	250	85	170	200	42?
YOXp-560	642	285	100	180	250	42?
YOXp-600	695	330	100	180	250	48?
YOXp-650	745	345	120	210	300	48?
