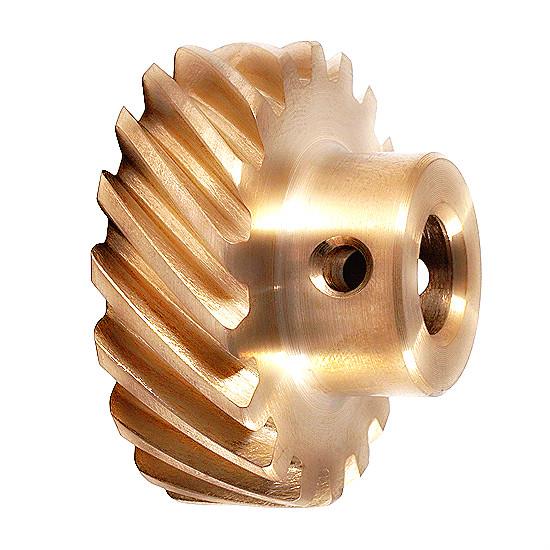

Aluminum-Bronze Screw Gears

Aluminum-Bronze Screw Gears

Material CAC702

① When mating screw gears made of the same material they may cause abrasion and scoring. It is recommended to mate Screw Gears composed of different materials.

② The allowable torques shown in the table are the calculated values according to the assumed usage conditions.

③ The backlash values shown in the table are the theoretical values for the backlash in the normal direction of a pair ofidentical gears in mesh.

④ For offset shaft applications, match a RH with a RH, or LH with a LH, to make a set of screw gears. For parallel shaft applications,

mesh opposite hands (RH and LH) of helical gear sets.

⑤ If the bore diameter is less than φ 4, then the bore tolerance class is H8. If the bore diameter is φ 5 or φ 6, and the hole length (total length) exceeds 3 times the diameter, then the class is also H8.

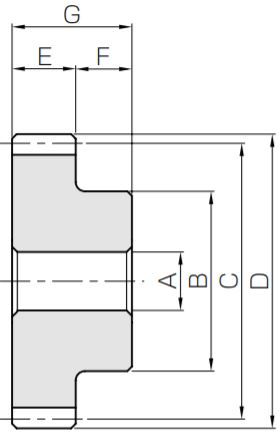

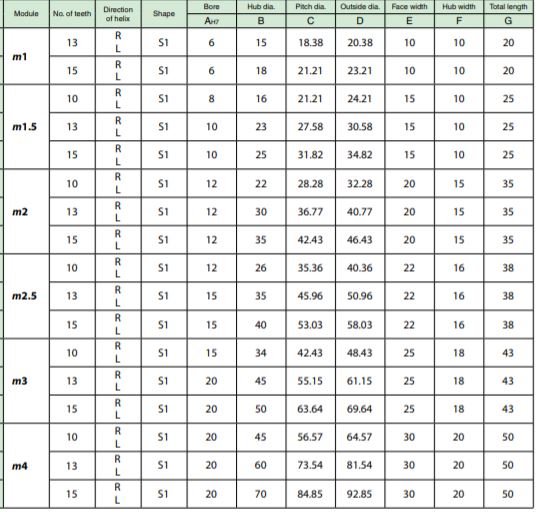

Specifications

Precision grade JIS grade N9 (JIS B1702-1: 1998) JIS grade 5 (JIS B1702: 1976)

Reference

section of gear Normal plane

Gear teeth Standard full depth

Normal

pressure angle 20°

Helix angle 45°
