Steel Screw Gears

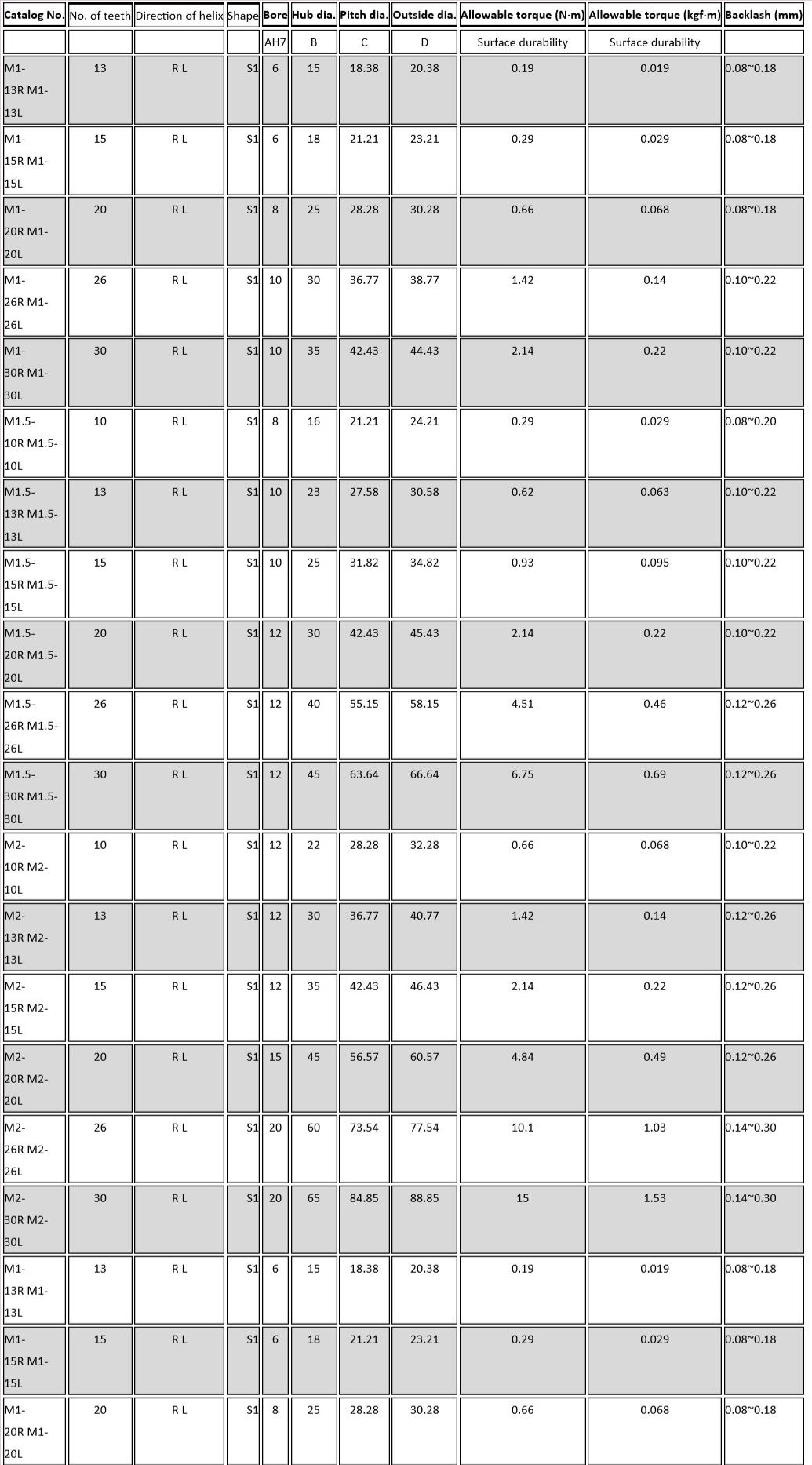

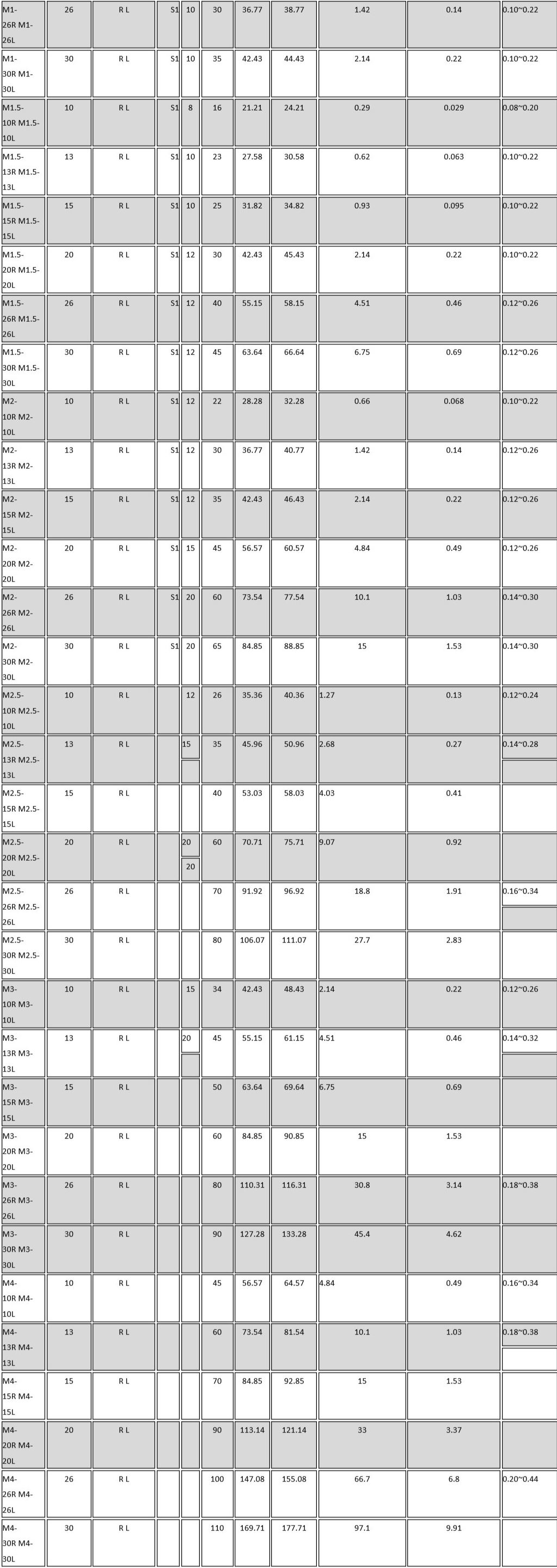

Specifications
Precision grade JIS grade N9 ＊ JIS grade 5
Reference
section of gear Normal plane
Gear teeth Standard full depth
Normal
pressure angle 20°
Helix angle 45°
Material S45C
| Mudule | m1 | m1.5 | m2 |
| Face width (E) | 10 | 15 | 20 |
| Hub width (F) | 10 | 10 | 15 |
| Total length (G) | 20 | 25 | 35 |
| Screw offset (J) | 5 | 5 | 7.5 |
