Product Description

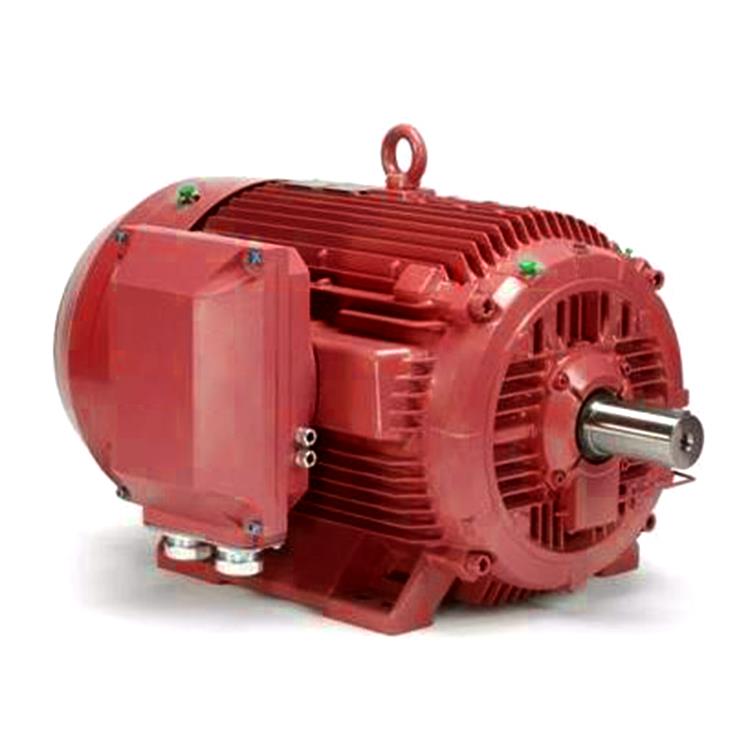

ac induction motor

The AC Induction Motor (ACIM), sometimes called a squirrel cage motor, is one of the most popular motors used in consumer and industrial applications. Induction machines are by far the largest group of all industrial electrical machines, converting approximately 70-80% of all electrical energy into mechanical form. The have a very robust rotor construction, which makes them suitable for high-speed applications. With proper design, they have good overloading and field weakening characteristics.

The ACIM is comprised of a simple cage-like rotor and a stator containing three windings
The changing field produced by the AC line current in the stator induces a current in the rotor which interacts with the field and causes the rotor to rotate
The rotor does not have any moving contacts, which eliminates sparking

Ac Induction Motor

No.	type	POWER kw	VOLT. V	FRENQ. Hz	SPEED rpm	CURR. A	TORQ. N.m	WEIG. kg
No.	type	POWER kw	VOLT. V	FRENQ. Hz	SPEED rpm	CURR. A	TORQ. N.m	WEIG. kg
112-1	TYGZ-150-112S-8	1.5	380	50	750	3.4	19.1	50
112-2	TYGZ-300-112M-6	3	380	50	1000	8.5	28.7	55
132-1	TYGZ-300-132S-6	3	380	50	1000	6	28.7	65
132-2	TYGZ-400-132S-4	4	380	50	1500	7.4	25.5	65
132-3	TYGZ-750-132M-4	7.5	380	50	1500	15	48	70
132-4	TYGZ-1100-132M-4	11	380	50	1500	18.5	70	70
220-1	TYGZ-2200-200-6	22	380	50	1000	41	210	280
220-2	TYGZ-2200-200-8	22	380	50	750	41	280	280
225-1	TYGZ-3000-225-6	30	380	50	1000	35	177	286
250-1	TYGZ-3000-250-8	30	380	50	750	35	236	382
280-1	TYGZ-4500-280-8	45	380	50	750	35	236	480

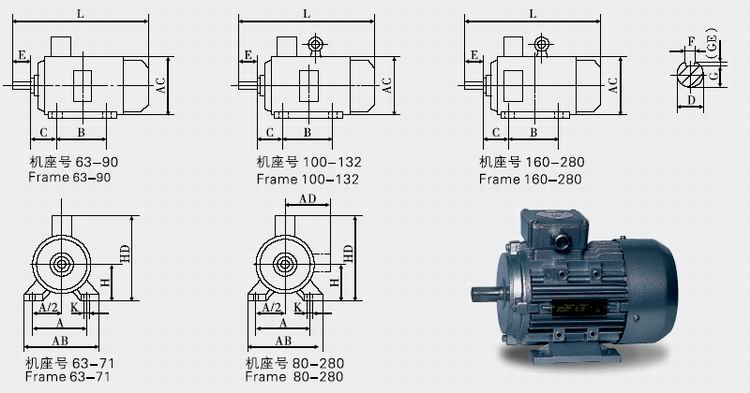

Mounting base with feet and endshield without flange(B3)

		Mounting dimensions										Overall dimensions
Mounting base	Poles	A	A/2	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
63M	2,4	100	50	80	40	11	23	4	8.5	63	7	135	130	70	180	230
71M	2,4,6	112	56	90	45	14	30	5	11	71	7	150	145	80	195	255
80M	2,4,6	125	62.5	100	50	19	40	6	15.5	80	10	165	175	145	220	295
90S	2,4,6,8	140	70	100	56	24	50	8	20	90	10	180	195	155	250	320
90L	2,4,6,8	140	70	125	56	24	50	8	20	90	10	180	195	155	250	345
100L	2,4,6,8	160	80	140	63	28	60	8	24	100	12	205	215	180	270	385
112M	2,4,6,8	190	95	140	70	28	60	8	24	112	12	230	240	190	300	400
132S	2,4,6,8	216	108	140	89	38	80	10	33	132	12	270	275	210	345	470
132M	2,4,6,8	216	108	178	89	38	80	10	33	132	12	270	275	210	345	510
160M	2,4,6,8	254	127	210	108	42	110	12	37	160	15	320	330	255	420	615
160L	2,4,6,8	254	127	254	108	42	110	12	37	160	15	320	330	255	420	670
180M	2,4,6,8	279	139.5	241	121	48	110	14	42.5	180	15	355	380	280	455	700
180L	2,4,6,8	279	139.5	279	121	48	110	14	42.5	180	15	355	380	280	455	740
200L	2,4,6,8	318	159	305	133	55	110	16	49	200	19	395	420	305	505	770
225S	4,8	356	178	286	149	60	140	18	53	225	19	435	470	335	560	815
225M	2	356	178	311	149	55	110	16	49	225	19	435	470	335	560	820
225M	4,6,8	356	178	311	149	60	140	18	53	225	19	435	470	335	560	845
250M	2	406	203	349	168	60	140	18	53	250	24	490	510	370	615	910
250M	4,6,8	406	203	349	168	65	140	18	58	250	24	490	510	370	615	910
280S	2	457	228.5	368	190	65	140	18	58	280	24	550	580	410	680	985
280S	4,6,8	457	228.5	368	190	75	140	20	67.5	280	24	550	580	410	680	985
280M	2	457	228.5	419	190	65	140	18	58	280	24	550	580	410	680	1035
280M	4,6,8	457	228.5	419	190	75	140	20	67.5	280	24	550	580	410	680	1035

Ac Induction Motor

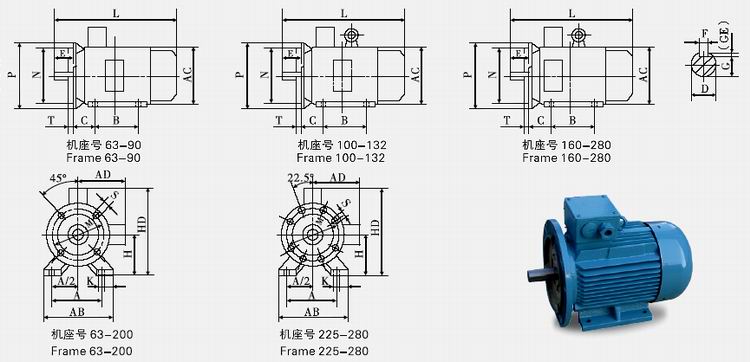

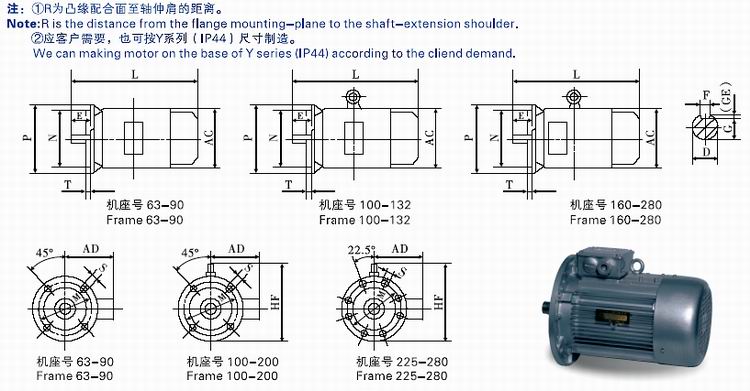

Mounting base with feet and endshield without flange(B35)

Mounting base	Flange No.	Poles	Mounting dimensions																	Overall dimensions
Mounting base	Flange No.	Poles	A	A/2	B	C	D	E	F	G	H	K	M	N	P	R	S	T	flange holes	AB	AC	AD	HD	L
63M	FF115	2,4	100	50	80	40	11	23	4	8.5	63	7	115	95	140	0	10	3	4	135	130	70	180	230
71M	FF130	2,4,6	112	56	90	45	14	30	5	11	71	7	130	110	160	0	10	3.5	4	150	145	80	195	255
80M	FF165	2,4,6	125	62.5	100	50	19	40	6	15.5	80	10	165	130	200	0	12	3.5	4	165	175	145	220	295
90S	FF165	2,4,6,8	140	70	100	56	24	50	8	20	90	10	165	130	200	0	12	3.5	4	180	195	155	250	320
90L	FF165	2,4,6,8	140	70	125	56	24	50	8	20	90	10	165	130	200	0	12	3.5	4	180	195	155	250	345
100L	FF215	2,4,6,8	160	80	140	63	28	60	8	24	100	12	215	180	250	0	15	4	4	205	215	180	270	385
112M	FF215	2,4,6,8	190	95	140	70	28	60	8	24	112	12	215	180	250	0	15	4	4	230	240	190	300	400
132S	FF265	2,4,6,8	216	108	140	89	38	80	10	33	132	12	265	230	300	0	15	4	4	270	275	210	345	470
132M	FF265	2,4,6,8	216	108	178	89	38	80	10	33	132	12	265	230	300	0	15	4	4	270	275	210	345	510
160M	FF300	2,4,6,8	254	127	210	108	42	110	12	37	160	15	300	250	350	0	19	5	4	320	330	255	420	615
160L	FF300	2,4,6,8	254	127	254	108	42	110	12	37	160	15	300	250	350	0	19	5	4	320	330	255	420	670
180M	FF300	2,4,6,8	279	139.5	241	121	48	110	14	42.5	180	15	300	250	350	0	19	5	4	355	380	280	455	700
180L	FF300	2,4,6,8	279	139.5	279	121	48	110	14	42.5	180	15	300	250	350	0	19	5	4	355	380	280	455	740
200L	FF350	2,4,6,8	318	159	305	133	55	110	16	49	200	19	350	300	400	0	19	5	4	395	420	305	505	770
225S	FF400	4,8	356	178	286	149	60	140	18	53	225	19	400	350	450	0	19	5	8	435	470	335	560	815
225M	FF400	2	356	178	311	149	55	110	16	49	225	19	400	350	450	0	19	5	8	435	470	335	560	820
225M	FF400	4,6,8	356	178	311	149	60	140	18	53	225	19	400	350	450	0	19	5	8	435	470	335	560	845
250M	FF500	2	406	203	349	168	60	140	18	53	250	24	500	450	550	0	19	5	8	490	510	370	615	910
250M	FF500	4,6,8	406	203	349	168	65	140	18	58	250	24	500	450	550	0	19	5	8	490	510	370	615	910
280S	FF500	2	457	228.5	368	190	65	140	18	58	280	24	500	450	550	0	19	5	8	550	580	410	680	985
280S	FF500	4,6,8	457	228.5	368	190	75	140	20	67.5	280	24	500	450	550	0	19	5	8	550	580	410	680	985
280M	FF500	2	457	228.5	419	190	65	140	18	58	280	24	500	450	550	0	19	5	8	550	580	410	680	1035
280M	FF500	4,6,8	457	228.5	419	190	75	140	20	67.5	280	24	500	450	550	0	19	5	8	550	580	410	680	1035
