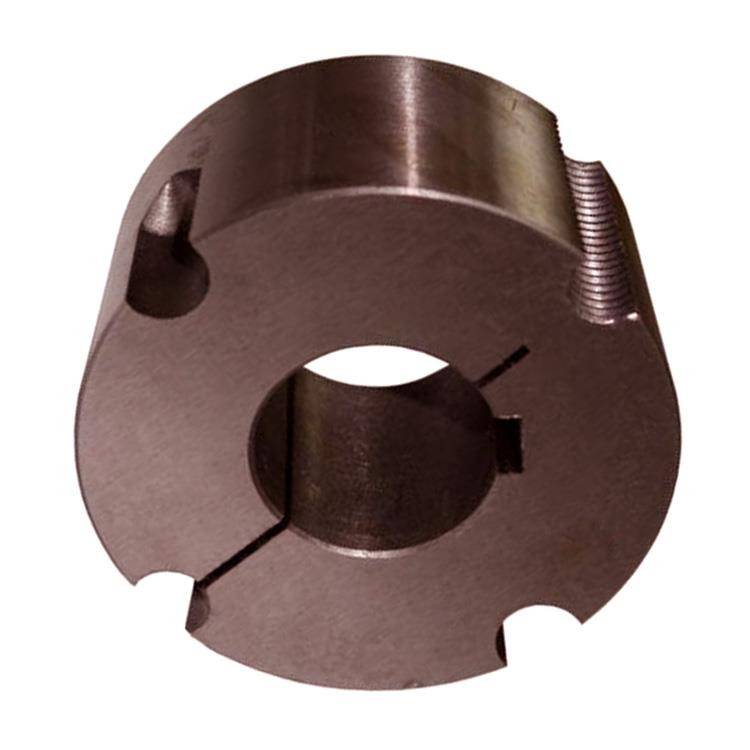

Taper Lock Bush

taper lock bush

Taper bushing is a new type of mechanical coupling components widely used in American and European market, with a high degree of standardization, high precision, compact structure, easy installation and removal, etc.By 8 degrees outside cone and pulley, sprocket and other transmission within the cone compression connection, make all kinds of transmission parts centering precision is greatly increased.Taper sleeve size as the series of standard design.Inside hole keyway according to ISO standards for processing.Interchangeability good commonality, it is suitable for various occasions.
When driving a after a long time running, slot hole and chain may be damaged, if this is the use of the taper sleeve transmission parts, when this happens, simply replace the same specifications used taper sleeve can be restored.Thus greatly improving the service life of the transmission parts, reduce the maintenance cost, to save time.

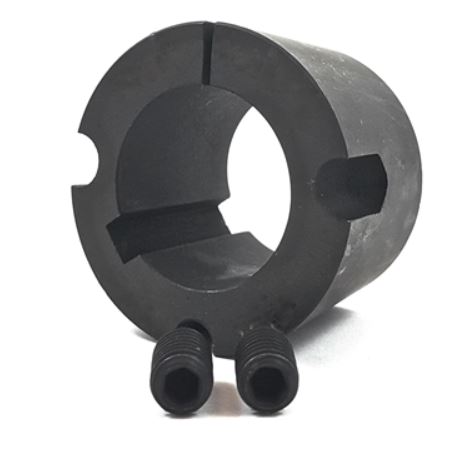

1310 TAPER LOCK BUSHING

1. clean all oil, dirt, and paint from shaft, bushing bore, outside of bushing and component (sprocket, sheave, etc...) bore.
2. Insert bushing into component. Match the hole pattern, not the thread holes (each hole will be threaded on one side only).

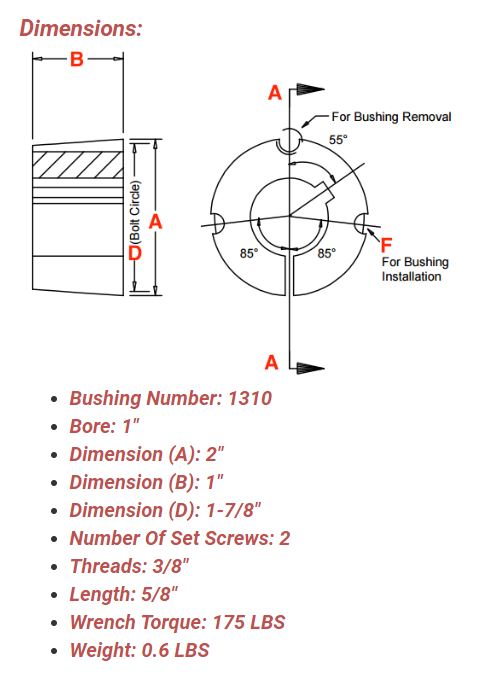

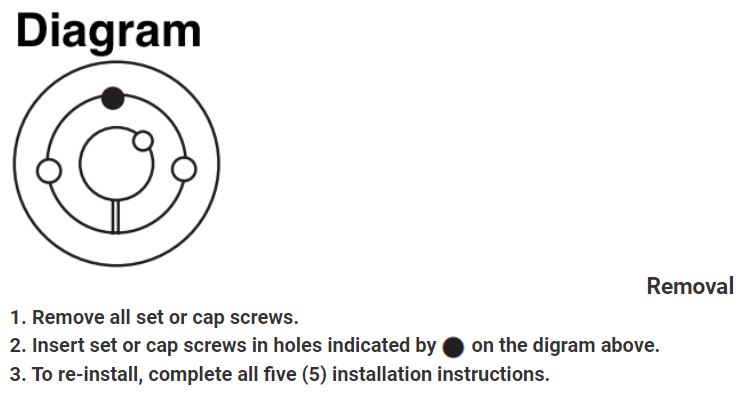

3. Thread set or cap screws into those half threaded holes indicated by the on the below diagram. mount assembly on shaft.
4. Alternately torque set or cap screws* to recommended torque setting in the chart below.
5. Fill all unoccupied holes with grease.
