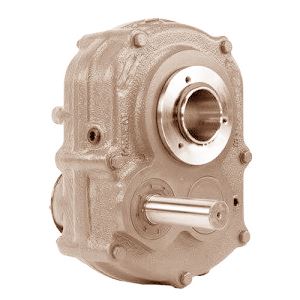

We modeled our Original Shaft Mount Reducer after the popular TXT reducer series. The Original EP mounts directly to the driven shaft and is available and in stock with supporting accessories that allow it to perform in a variety of environments and applications. This shaft mount reducer, available in output bore sizes ranging from 1-15/16” to 5-7/16” in both 15:1 and 25:1 ratios, includes a torque arm and a 2-year warranty.
Product Features
15:1 and 25:1 ratios
Box sizes 2-10
Tapered bushing type (bushing not included)
Premium quality ball and tapered bearings - double lip seals
Shafts and gears manufactured from high grade steel, case hardened and precision ground to AGMA standards
Industrial grade all-cast iron housings protect gearing for life
Extended gear centers and tooth contact
Metal reinforced double lip, spring loaded oil seals

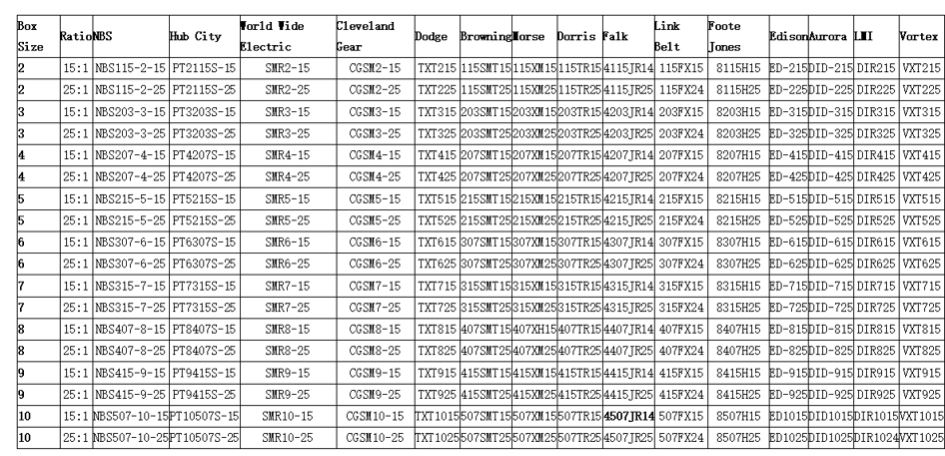

Dimensional drop-in for all major makes
