The torque limiter is activated when the operating the torque exceeds the setting value.During the limiting phase,the device transmits reduced the power in pulses.The eilmination of the external cause and the reduction of the PTO speed allows the nomal power transmission to be re-established.When the limiter is activated,it is recommended to disconnect the PTO to aviod unnecessary wear and overheating .

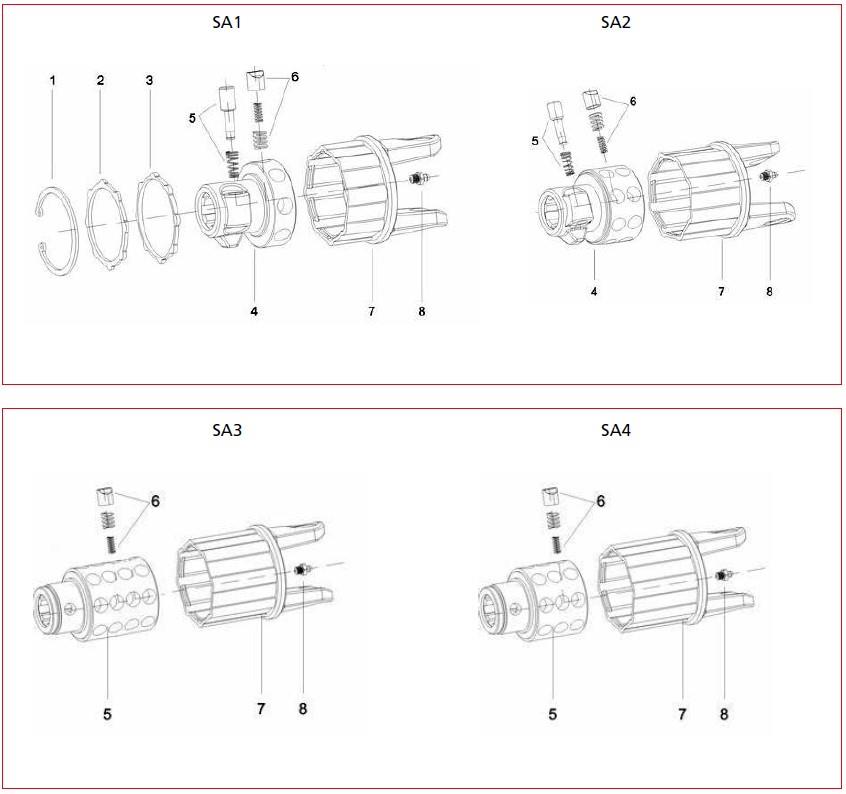

| POS | DESCRIPTION | DESCRIZIONE |
| 1 | SNAP RING | SEEGER |
| 2 | LOCKING PLATE | DISCO DI CHIUSURA |
| 3 | DUST GUARD RING | GHIERA |
| 4 | HUB | MOZZO |
| 5 | PUSH PIN KIT | KIT PULSANTE |
| 6 | RATCHET + SPRING KIT | NOTTOLINO E MOLLE |
| 7 | HOUSING WITH YOKE | CORPO |
| 8 | GREASE FITTING | INGRASSATORE |
