Planetary Winch Drive

Raydafon offers wide range of Planetary Winch Drives which are Highly standard modular designed, Better in quality, Cost effective, Energy efficient, Low Noise, Long service life, Large Radial Loading ability. We provide Winch with planetary gearboxes to our customers. Raydafon manufactures customised gearboxes for material handling equipment.

We manufacture Electric Winches capacity ranges from 500 kg to 50000 Kg ( 0.5 Ton to 50 Ton ), Reduction ratio up to 8000 : 1

Capacity - 2000Kg to 20000Kg

• Ratio: 3.6 : 1 to 8000 : 1

• Input Power- 0.5 HP to 50 H

• Input Speed - 750 to 2000 RPM

• Input : Electric / Hydraulic

• Rope Diameter : 8 mm to 25 m

Beacon Winches operated by Electric Motor (Brake Motor) and Hydraulic Motor and supplied with Steel Wire ropes and Control panel Beacon Winches are compact, Foot mounted, Efficient, having high Load Carrying Capacity, reversible

Beacon Winches widely used in Planetary Gearboxes are widely used in Material Handling Equipments, Mechanical Industry, Sugar Industry, Cement Industry, Chemical Industry, Food Industry, Construction Industry, Agricultural Industry, Power Industry, Mobile Cranes and Over head Cranes etc

Beacon Electric Winches are manufactured from superior quality raw material such as Alloy Steel EN8/EN9, EN19, EN24/42,EN36c,, 16 MnCr5, CrMo4, SAE8620, MnCr/20, MnCr5/EN353, Cast Steel IS:1030, Gr2, IS :2707 Gr2, Cast Iron CIGR 25/30, GGG40/50 OR SGI Case Carburised Steel and Hardened Steel.

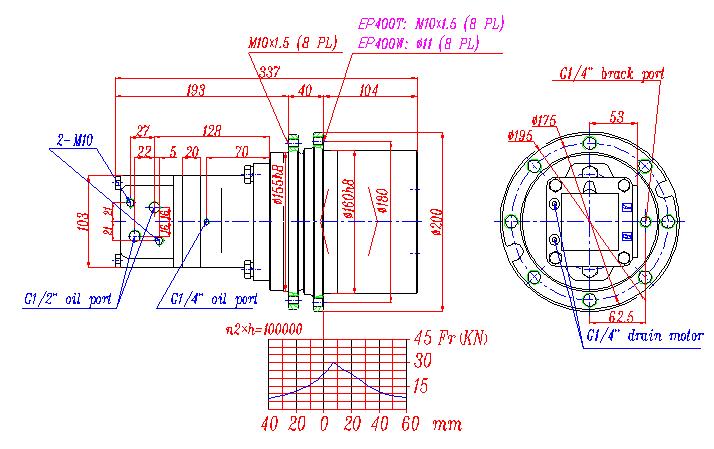

EP400W1 Winch Drives T2max=1300N.m

Technical specification

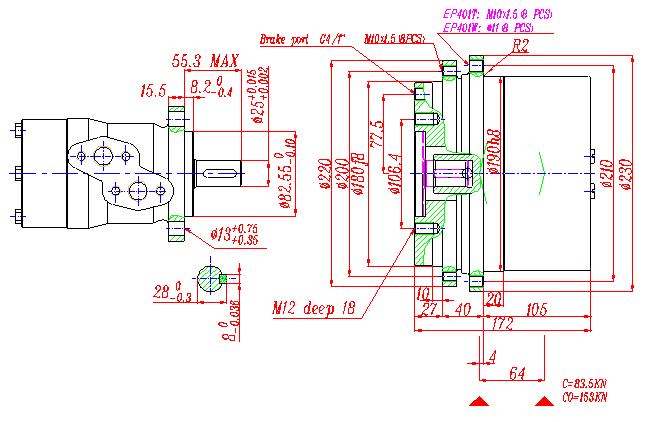

EP401W1 Winch Drives T2max=2000N.m

Technical specification
