Planetary Pitch Drive

Manufacturer of planetary Pitch Drive, Planetary gear reducer, Planetary geared motor, Epicyclic gearing, Planetary gearing, Gearboxes, can interchange and replace with brevini gearbox, david brown gearbox and so on.

Raydafon have many years of experience in planetary Pitch Drive, we produce very high quality planetary Pitch Drive with very competitive prices. planetary Pitch Drive have been designed for different transmission .

The power is transmitted form the motor to sun gearboxes. The sun gearboxes drives three planetary Pitch Drive, which are contained within an internal toothed ring gearboxes. The planetary Pitch Drive are mounted on the planetary carrier. The planetary carrier is part output shaft. So when the sun gearboxes rotates, it drives the three planetary Pitch Drive inside the ring gearboxes.

As planetary Pitch Drive rotate with carries and automatically the highest torque and stiffness for a given envelope. The other significant advantages are simple and efficient lubrication and a balanced system at high speeds. The balanced planetary kinematics and the associated load sharing makes the planetary-type gearboxes truly ideal for servo applications.

Modular concept, allows us to after particularly short delivery time for gearboxes with a constantly high standard of quality whether your applications requires a reducer for motors, Let our term of engineers work for you.

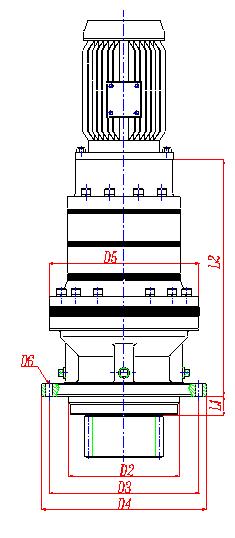

EP700L4 EP701L4 Yaw and Pitch Drive

Technical specification

• Input – output rotate same direction.

• Other ratio can be specially designed.

EP703AL4 EP705AL4 Yaw and Pitch Drive

Technical specification
